Making Concrete Specimens
A standard 100 mm Cast Iron Cube Mould. It has dimensions measuring 240 mm in length, 160 mm in width, and 110 mm in height, with a weight of 8.0 kg.

Making Concrete Specimens
We provide wide range of high quality concrete specimens mould such as cube, cylinder & beam with difference kind of size. Mould material such as HEAVY DUTY ABS PLASTIC, HIGH DENSITY PLASTIC, CAST IRON & MILD STEEL are available. The NL 4014 C / 025 is a 100 mm Cast Iron Cube Mould in an L-shape design. It features dimensions measuring 230 mm in length, 165 mm in width, and 110 mm in height, with a weight of 8.0 kg.

Making Concrete Specimens
A standard 100 mm Cast Iron Cube Mould. It has dimensions measuring 165 mm in length, 160 mm in width, and 115 mm in height, with a weight of 8 kg.

Making Concrete Specimens
A standard 150 mm Cast Iron Cube Mould. It has dimensions measuring 285 mm in length, 215 mm in width, and 160 mm in height, with a weight of 15.6 kg.

We provide wide range of high quality concrete specimens mould such as cube, cylinder & beam with difference kind of size. Mould material such as HEAVY DUTY ABS PLASTIC, HIGH DENSITY PLASTIC, CAST IRON & MILD STEEL are available. The NL 4014 C / 003 is a 150 mm Cast Iron Cube Mould in an L-shape design. It has dimensions measuring 285 mm in length, 215 mm in width, and 160 mm in height, with a weight of 15.6 kg

Making Concrete Specimens
An E-Version 150 mm Cast Iron Cube Mould. It has dimensions measuring 235 mm in length, 225 mm in width, and 170 mm in height, with a weight of 8.5 kg.

Making Concrete Specimens

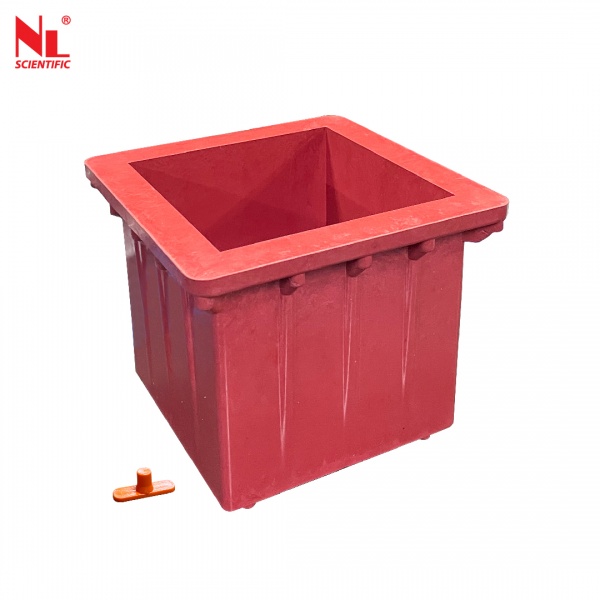

One-piece moulds, made from hard plastic, strong, light, under formable; resistant to vibration shocks and wear, don’t require mounting and dismounting operations, thus saving time and labour. The specimen is expelled from the mould by compressed air or water. They just require a simple clean and demould oiling before being ready for use again for many times.
