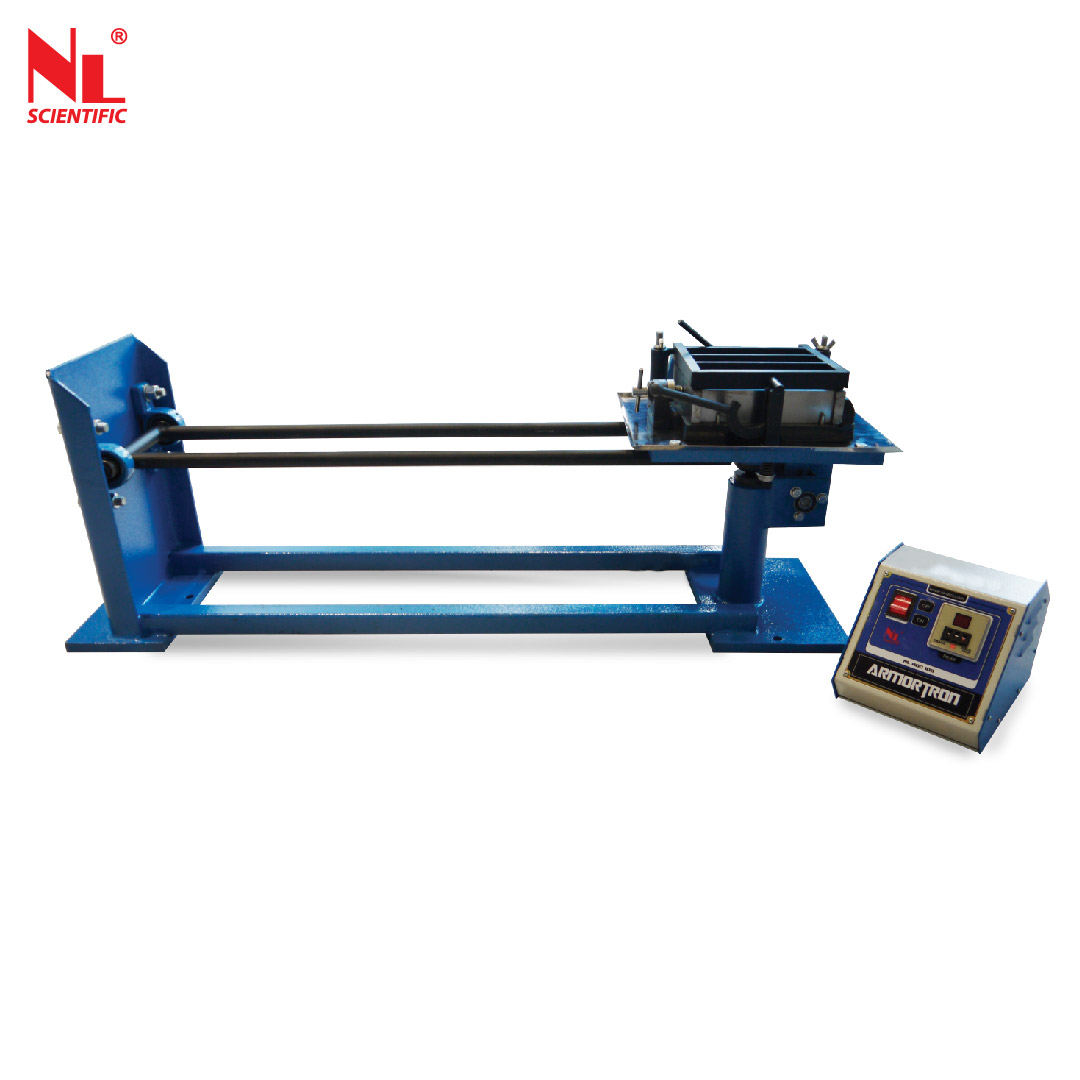

Jolting Apparatus
NL 3006 X / 002




  • Description

Standard: EN 196-1, ISO 679



Preparation of 40 x 40 x 160mm prisms

The apparatus used to compact cement mortar prism in the three gang mould. Made in galvanized chrome steel with quick locking device for sample. Structure in two parts, fixed and oscillating. Easily removable to check weight. Drop height 15 mm with a drop 60 drops per minute cycle. Control panel with main switch, main neon. Start / Stop button with digital selector, to select number of cycles which the machine automatically stop. Supply with emergency stop switched and built in feed hopper and quick clamp.



Technical Specifications:

 Model Number  NL 3006 X / 002
 Dimension (mm)    1150 (L) x 225 (W) x 360 (H)
 Approx. Weight  39 kg
 Power  220 - 240 V, 50 / 60 Hz, 1 ph
