Standard: API 13B-2 Mud Testing It is use to provide a simple method to determine accurately the mud density. This apparatus consists of a base and graduated arm with cup, lid, knife edge, rider, built-in spirit level and counter-weight, carrying case. The constant volume cup is affixed to one ...Read more

Baroid Mud Balance
NL 3034 X / 002

Inquire Quotation

PRODUCT DETAIL

Description

Standard: API 13B-2

Mud Testing

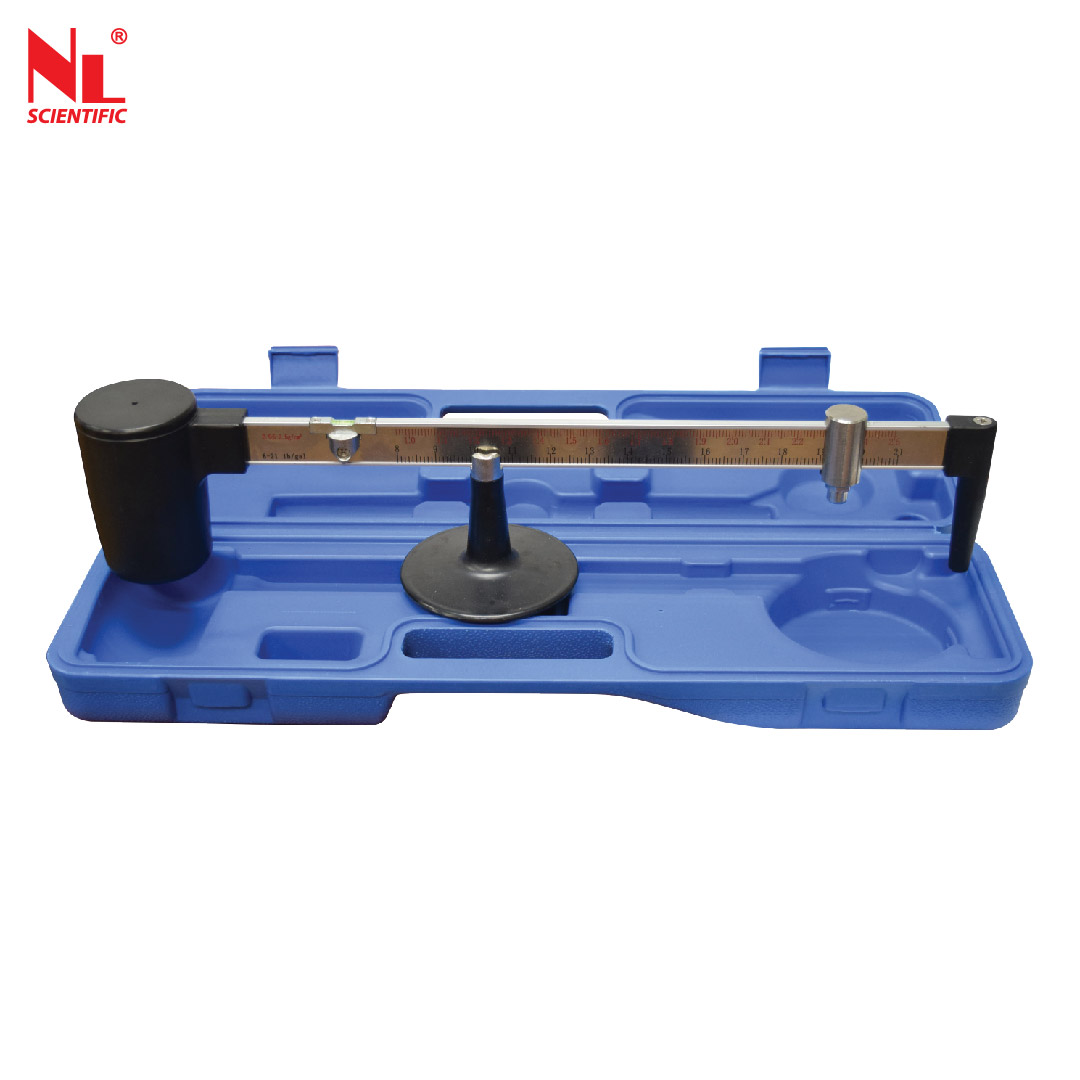

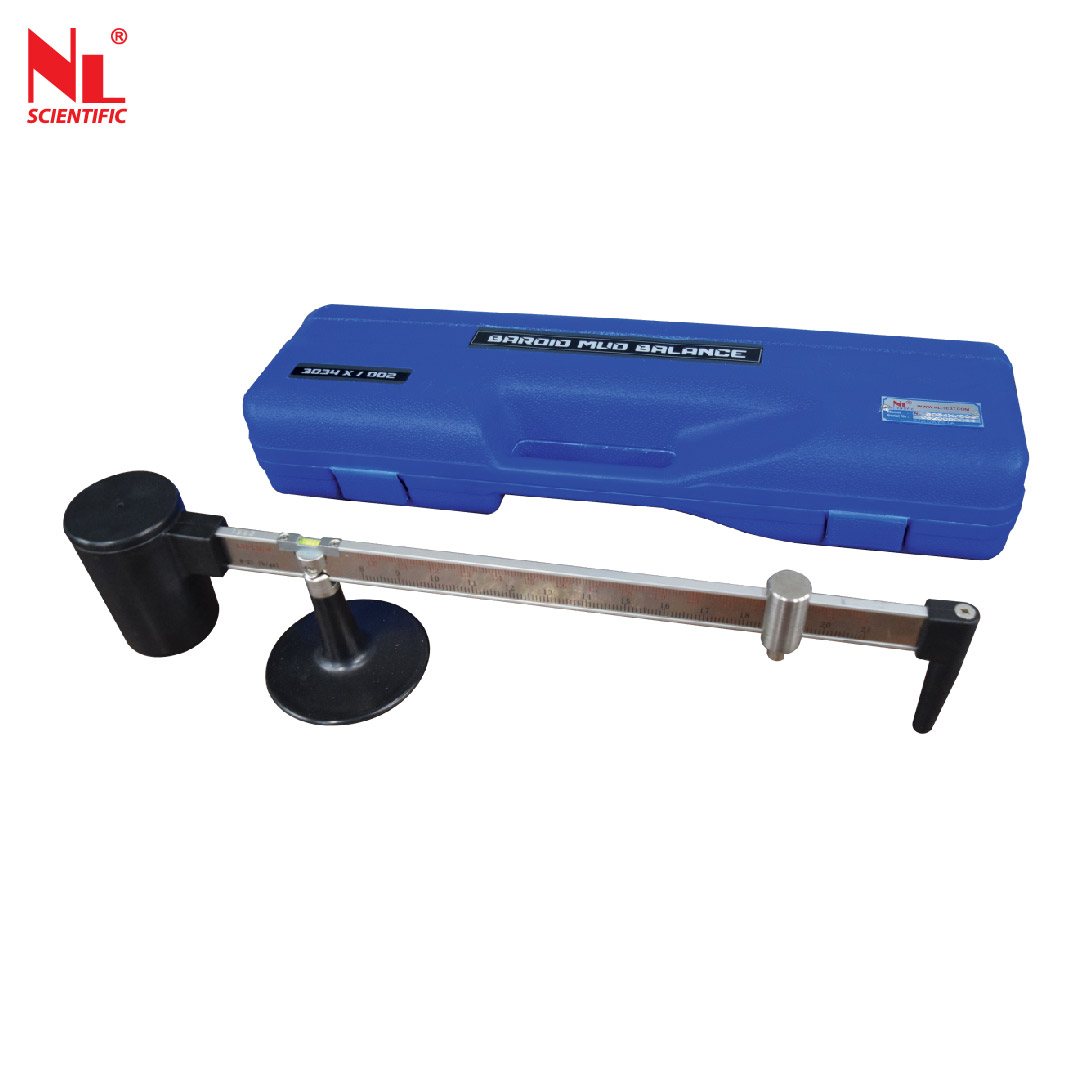

It is use to provide a simple method to determine accurately the mud density. This apparatus consists of a base and graduated arm with cup, lid, knife edge, rider, built-in spirit level and counter-weight, carrying case. The constant volume cup is affixed to one end of the graduate arm & the counter-weight on the opposite end.

Technical Specifications:

Model Number	NL 3034 X / 002

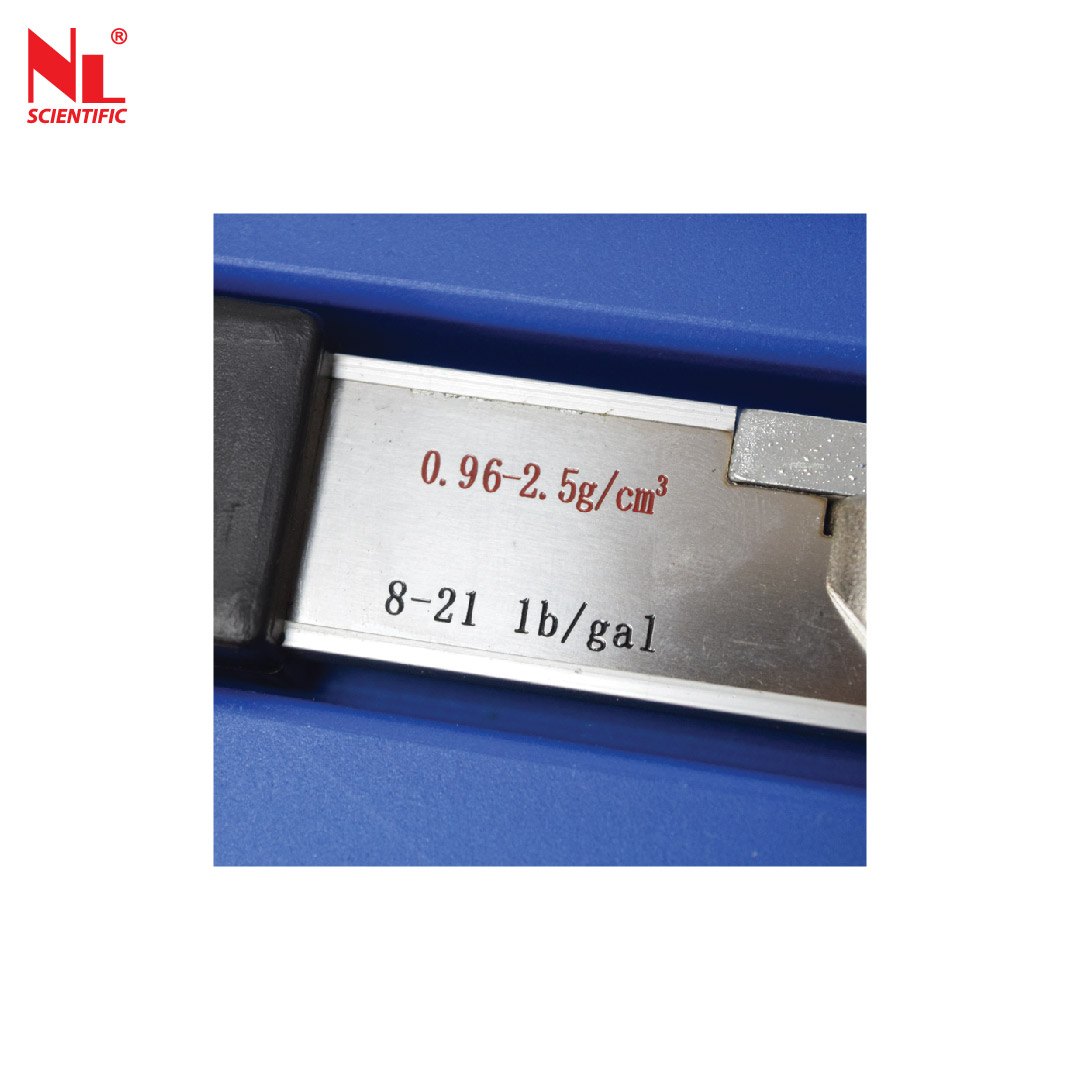

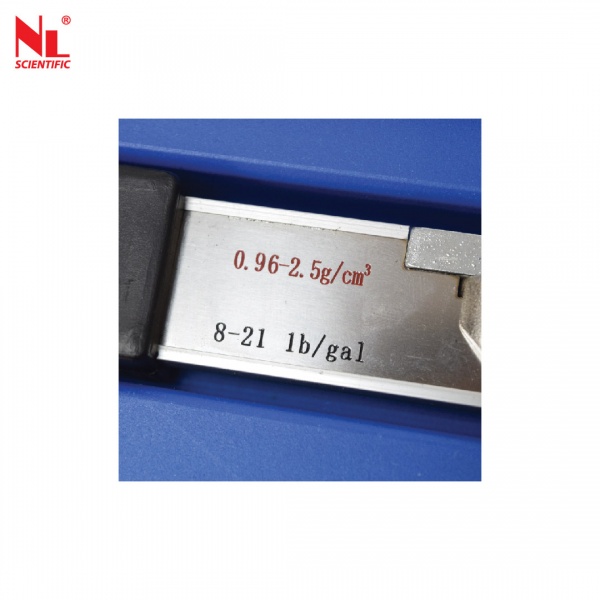

Measuring Range	0.96 - 2.5 g/cm³ (8.0 - 21 1b/gal)
Product Dimension (mm)	480 (L) x 100 (W) x 120 (H)
Carry Case Dimension (mm)	510 (L) x 150 (W) x 90 (H)
Approx. Weight	1.2 kg
