Standard: EN 14636-1
Compression & Flexural

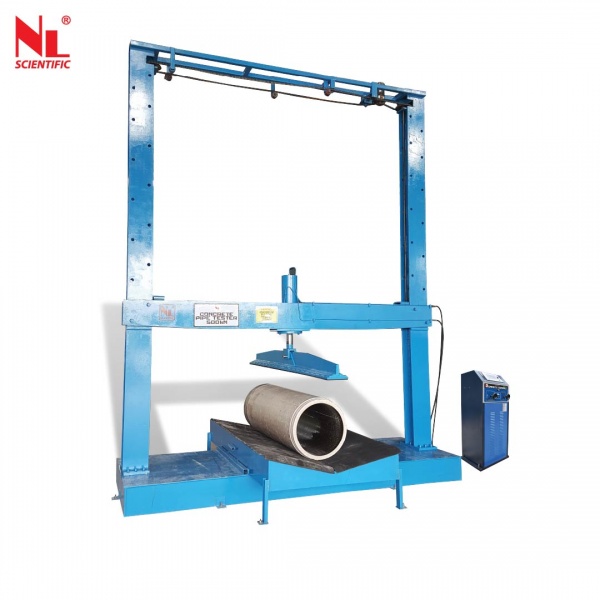

Designed and manufactured to test concrete sewer and drain pipes used in drainage works,water and irrigation supply system etc.

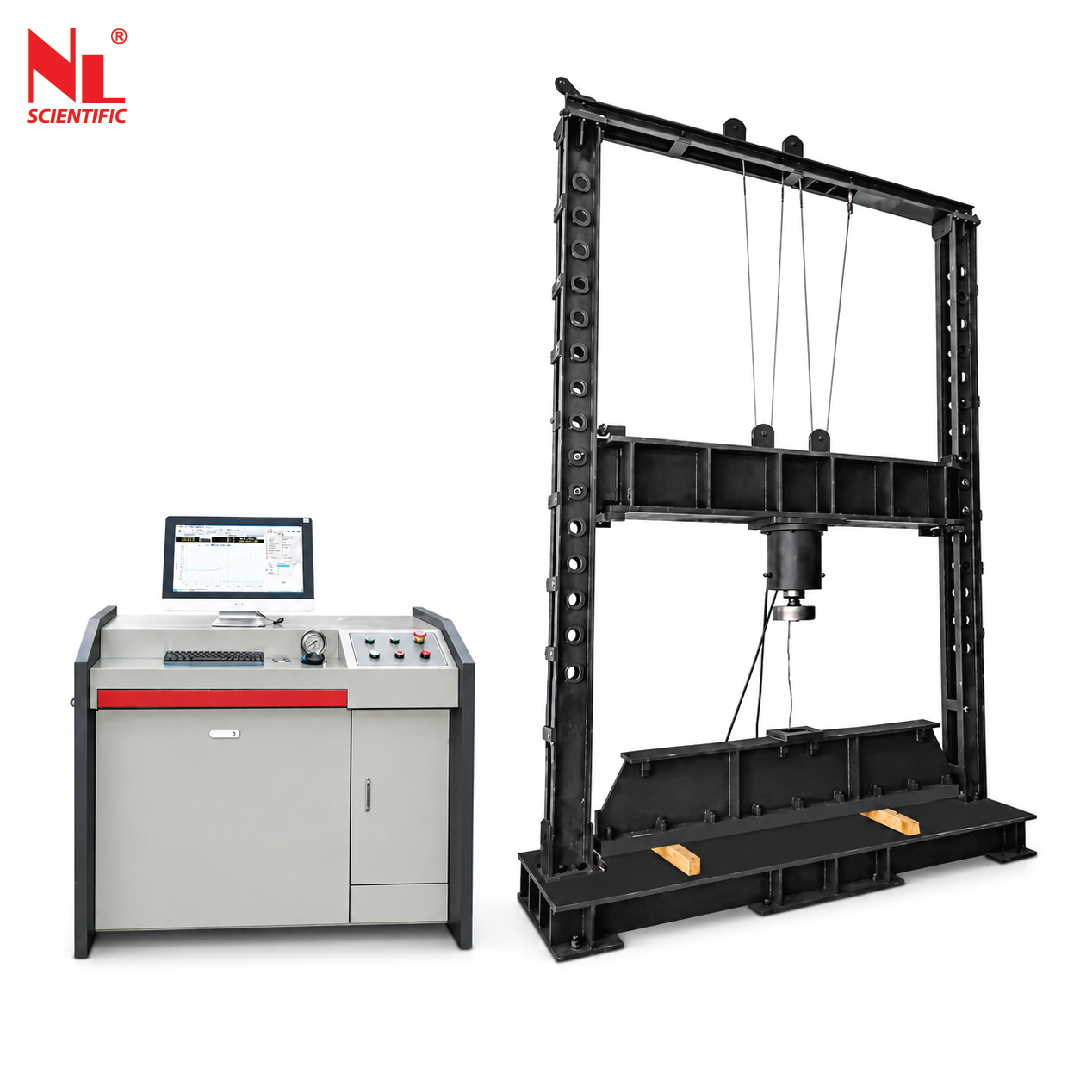

The Machine is composed of two parts :
- Hydraulic control loading come with Eco Smartz console
- Testing frame; steel made
Features :
- Robust testing frame for seamless testing
- Data can be printed and transfer using specified data transfer installer,great field for work
- Powerful professional analysis-process software allows for the automatic of test reports
Technical Specifications :
| Model Number |
NL 4042 X / 001 |
| Load Sensor |
Max Capacity : 500 kN x 0.1kN Sensitivity |
| Control System |
NL Smartz Console Unit come with Touch Screen Display |
| Compression System |
Double acting cylinder with 500 mm ram travel |
| Max. Pipe Dimension |
Dia. 3200 x 2900 mm length |
| Frame Dimension |
3(L) x 4(W) x 4.5(H) meter |
| Total Weight Approx. |
4500 kg |
| Power |
220 VAC, 1 ph, 50/60 Hz, 6Amp,750 W |
| Cross Beam Movement |
Electrical gear motor control |
| |
|
*1 Copy of Manual Instruction
