ISO 376 Force Verification & Calibration This load cell is designed for calibrating compression testing machines. It features a high-quality steel block 9the sensitive element) with fitted strain gauges, all enclosed in a protective sheath. When force is applied, the strain gauges transmit the ...Read more

Digimatic Load Cell
NL 4031 X / 003

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

ISO 376

Force Verification & Calibration

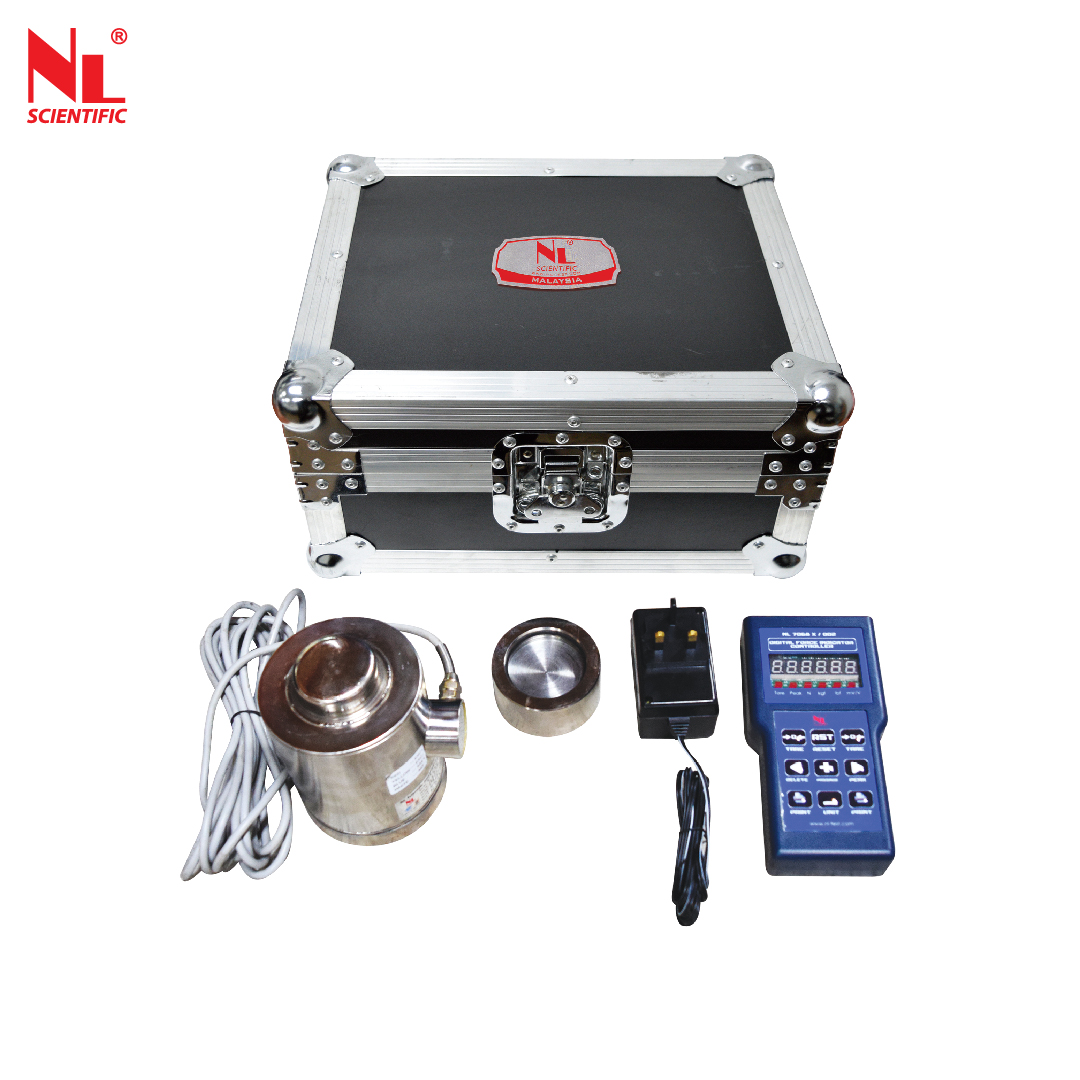

This load cell is designed for calibrating compression testing machines. It features a high-quality steel block 9the sensitive element) with fitted strain gauges, all enclosed in a protective sheath. When force is applied, the strain gauges transmit the load data to an amplifier, which then provides a precise digital readout.

Technical Specifications :

Model Number	NL 4031 X / 003
Capacity	3000 x 0.01 kN
Load Cell Dimension (mm)	Ø160 x 310 (H)
Working Environment	0 - 45°C, Moisture ≤ 80% RH
Accuracy Error	±1.0 %
Type of Load Cell	Column-type (Compression Made Only)
Material	Stainless Steel
Approx. Weight	41 kg
Power	Nicd AC Adaptor as charging source
