Temperature Measurement Data Logger with 4.3 inch color display, 10 isolated analog channels, 4 digital channels, 4 alarm outputs, 4GB internal memory, SDHC card slot (max 32GB), USB PC interface. Includes APS software, start-up manual, AC power supply. Features :- Wireless LAN capability | remote ...Read more

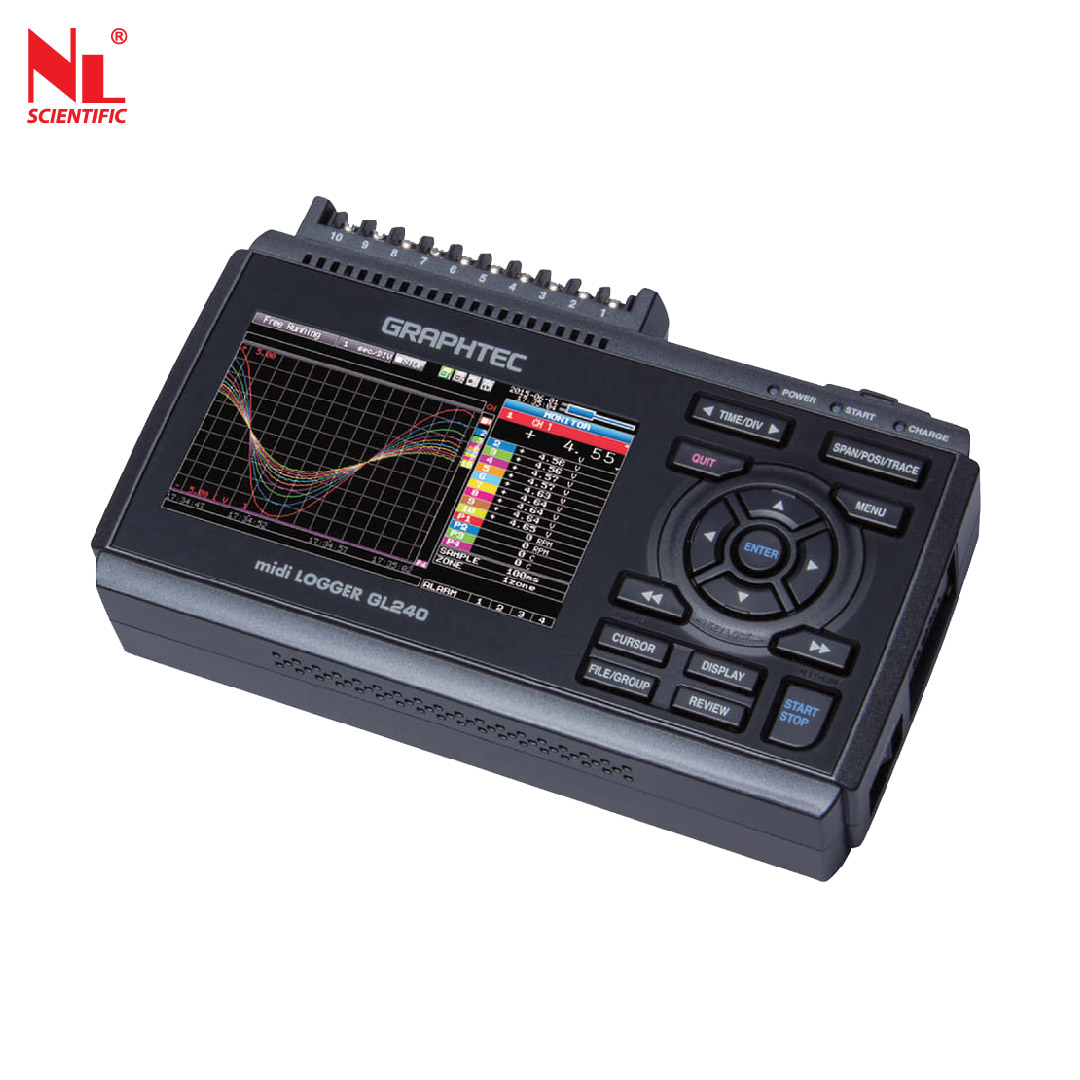

Graphtec 10 Channels 4.3inch Color Display Data Logger
NL 7099 X / 002

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Temperature Measurement

Data Logger with 4.3 inch color display, 10 isolated analog channels, 4 digital channels, 4 alarm outputs, 4GB internal memory, SDHC card slot (max 32GB), USB PC interface. Includes APS software, start-up manual, AC power supply.

Features :
- Wireless LAN capability | remote monitoring & datalogging
- Flexible input system for wide array of applications
- Ability to access additional (GL100) sensors & adapters
- Extended memory capacity using SD memory card
- Max sampling interval up to 10ms
- Smartphone access

Technical Specifications :

Model Number	NL 7099 X / 002
Alternate Code	GL240
Input Method	All channels isolated balanced input, scans channels for sampling
Type of Input Terminal	Screw terminal (M3 screw)
Measurement Range	Voltage : 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V & 1-5V F.S. (Full Scale) Thermocouple Type : K, J, E, T, R, S, B, N, and W (WRe5-26) Humidity : 0 to 100 % RH - using the humidity sensor (option B-530)
Filter	Off, 2, 5, 10, 20, 40 (moving average in selected number)
Measurement Accuracy	Voltage : ± 0.1% of F.S. (Full Scale) Temperature (Thermocouple)
A/D Converter	Sigma-Delta type, 16 bits (effective resolution: 1/40000 of the measuring full range)
Maximum Input Voltage	1) Between (+) / (-) terminal : - 20 mV to 1 V range: 60 Vp-p, - 2 V to 100 V range: 110 Vp-p 2) Channels ((-) / (-)) : 60 Vp-p 3) Channel / GND : 60 Vp-p
Max. Voltage (withstand)	Between channels : 350 Vp-p (1 minute) Channel / GND : 350 Vp-p (1 minute)
