Falling Head Permeameters
NL 5035 X / 001

  • Description

Standard: ISO 17892-11

Falling Head Apparatus

Used to determine the permeability of fine-grained soil such as clay-like or silty soil. Flow of water through the specimen is observed by monitoring the rate of fall water in tube.



Technical Specifications :

 Model Number   NL 5035 X / 001



Technical Specifications :

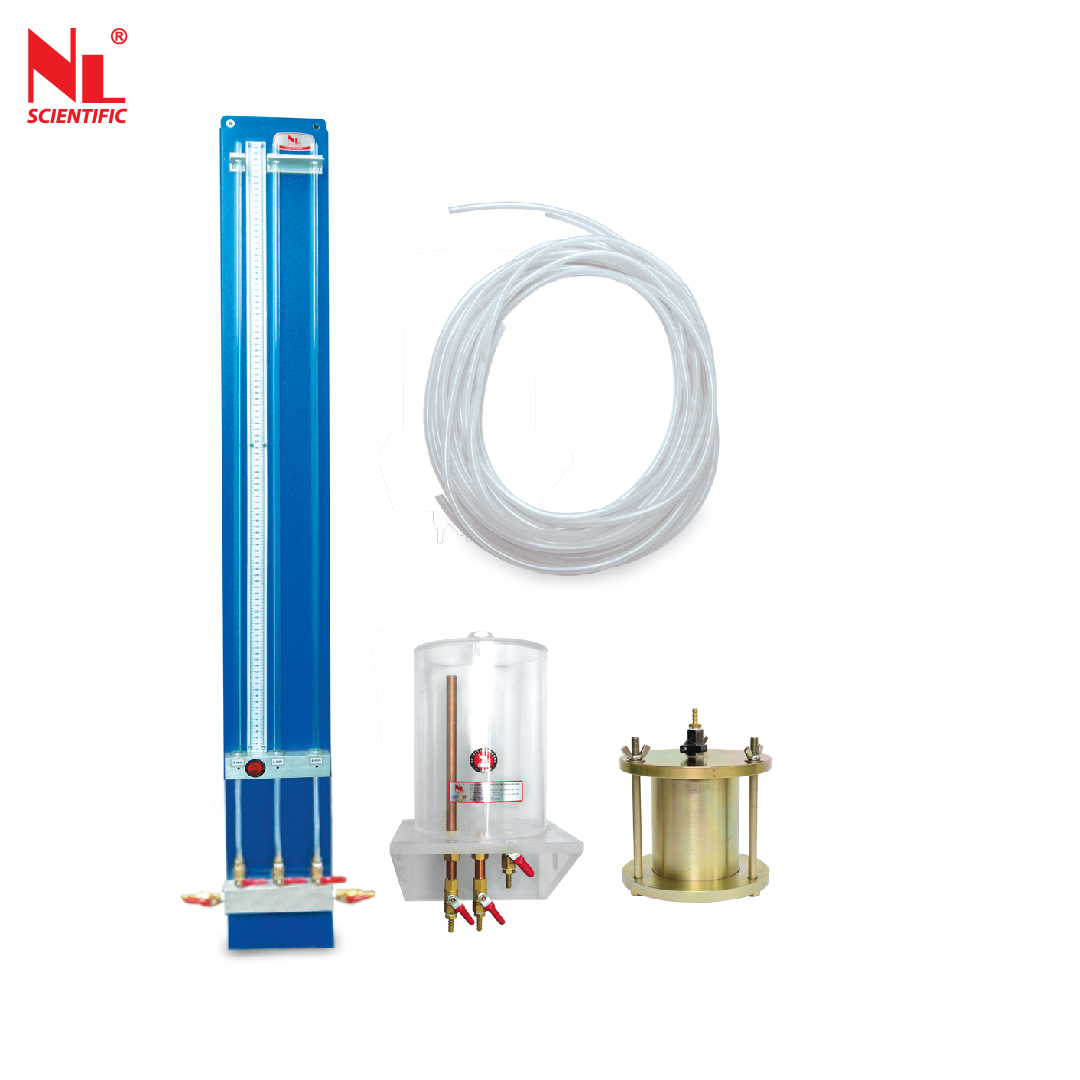

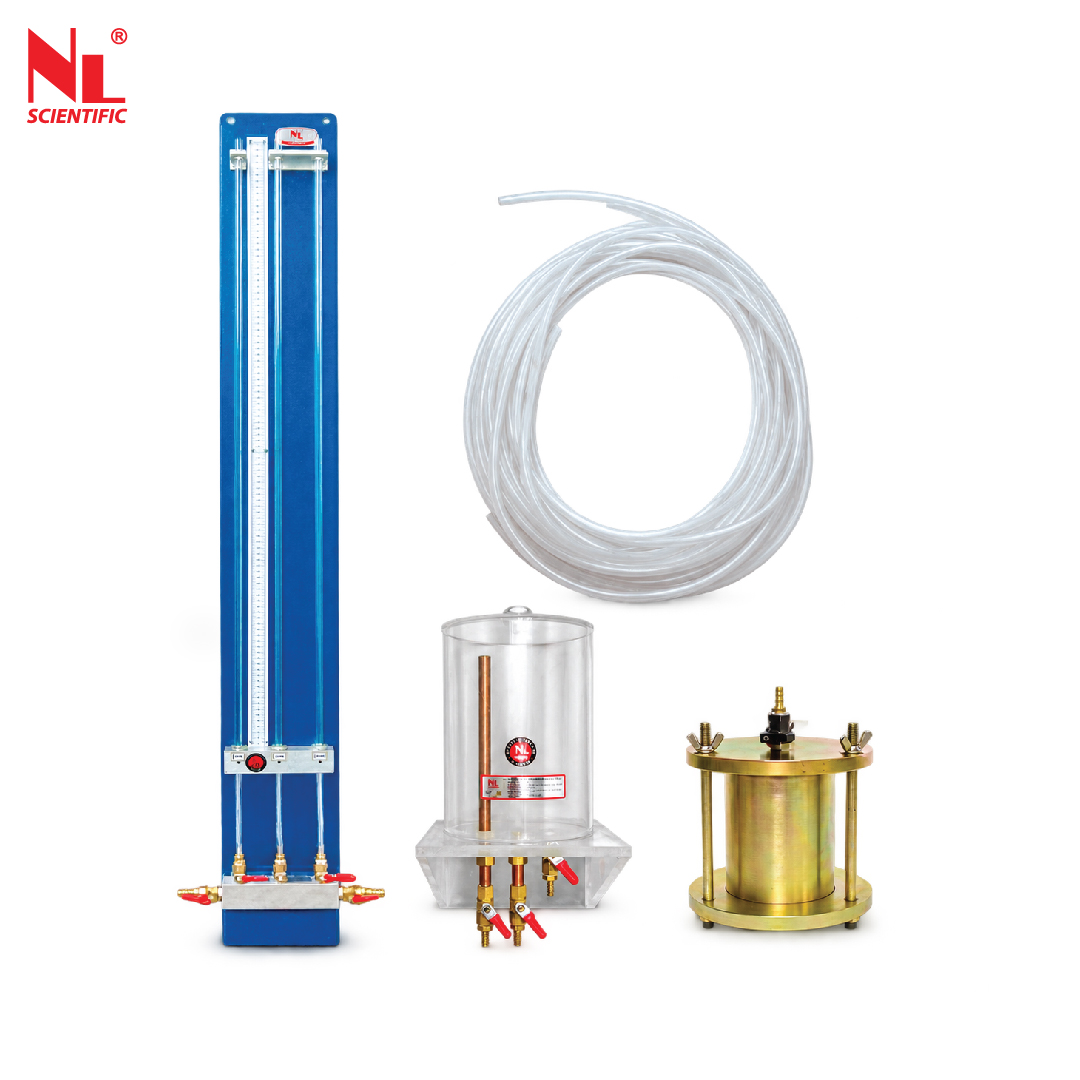

 Model Number  Parts Description Dimension Approx. Weight  Qty
 NL 5035 X / 001 – P 002   Ø 4” Compaction Permeameter Cell Ø 130 x 220 mm 7.8 kg 1no.
 NL 5035 X / 001 – P 003  Manometer Tubes & Stand 65 x 190 x 1400 mm  3.9 kg 1no.
 NL 5034 X / 001 – P 004   Constant Level Tank c/w Bracket 200 x 200 x 480 mm 7 kg 1no.
 NL 5034 X / 005  Rubber Hose 4 meters Length 0.5 kg 1set

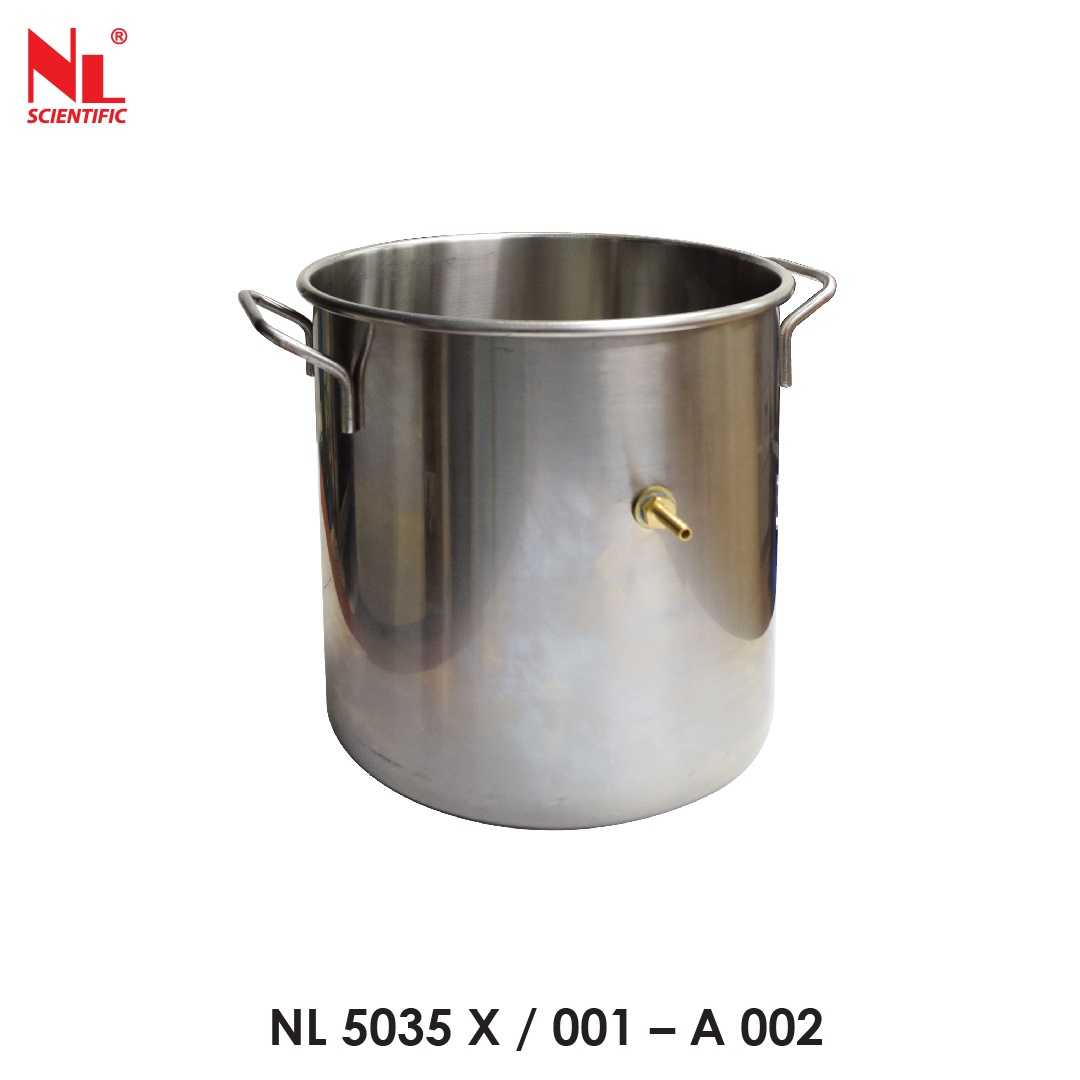

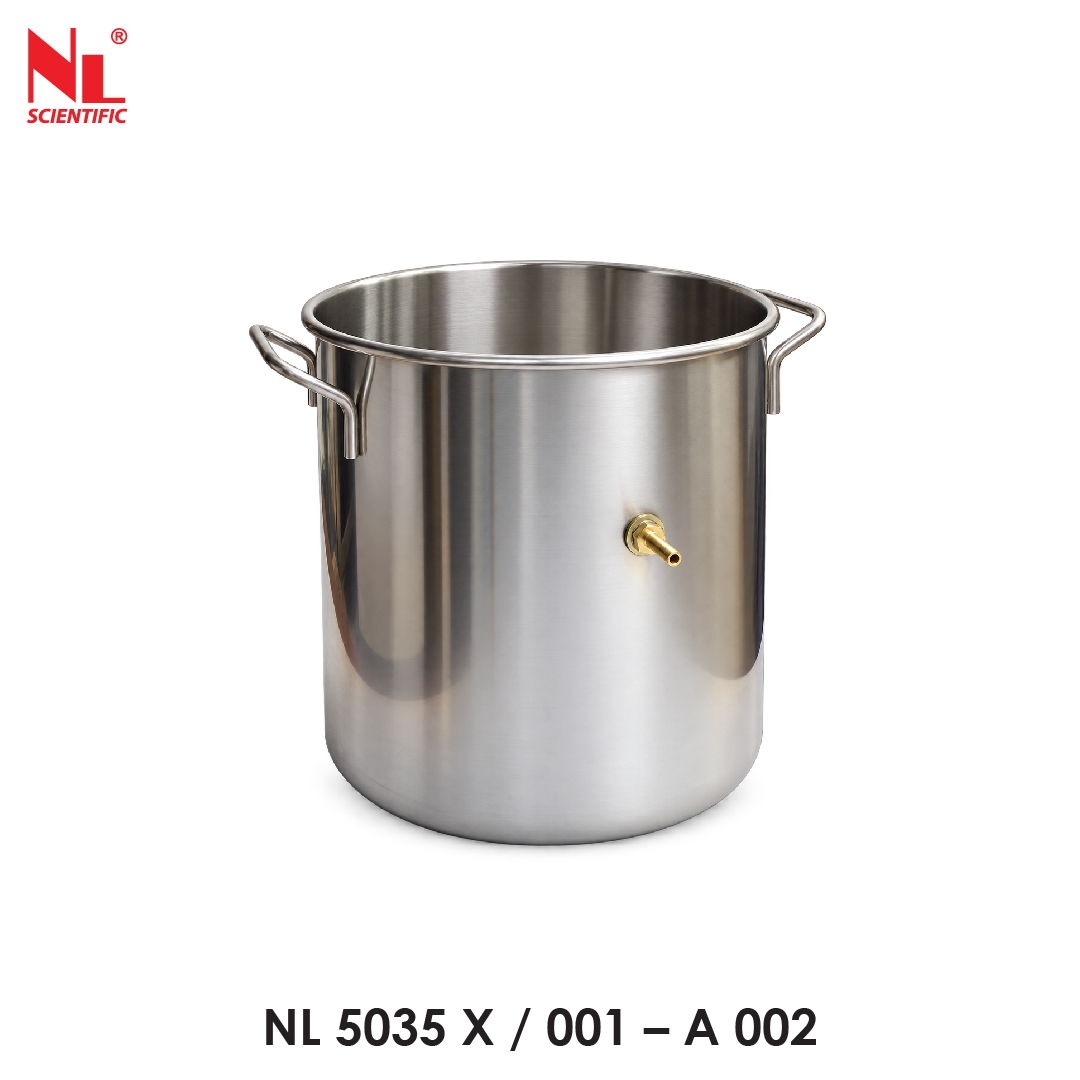

 NL 5035 X / 001 – A 002  Soaking Reservoir c/w Overflow Tube  - - 1set



Optional Accessories :

 Model Number  Accessories Description

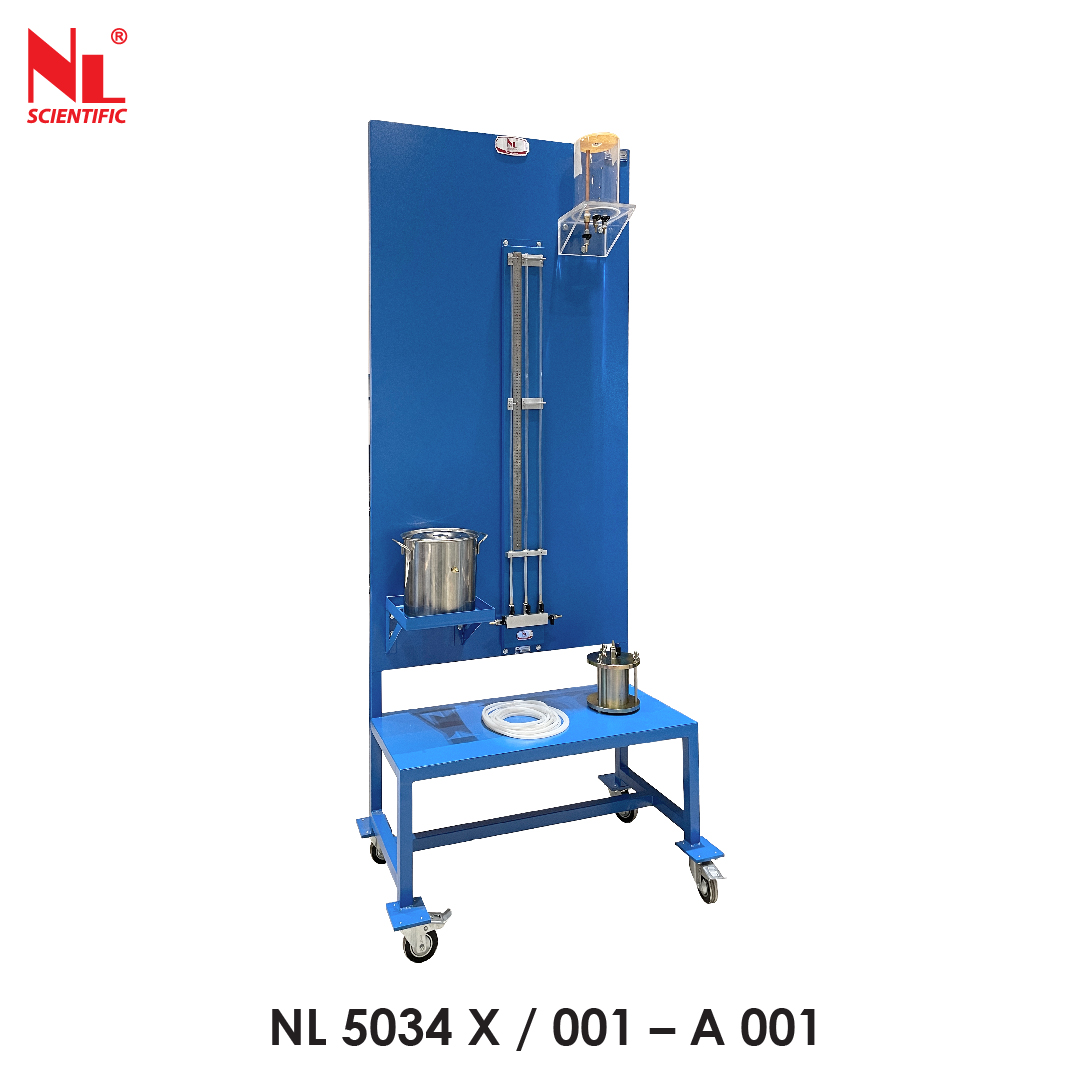

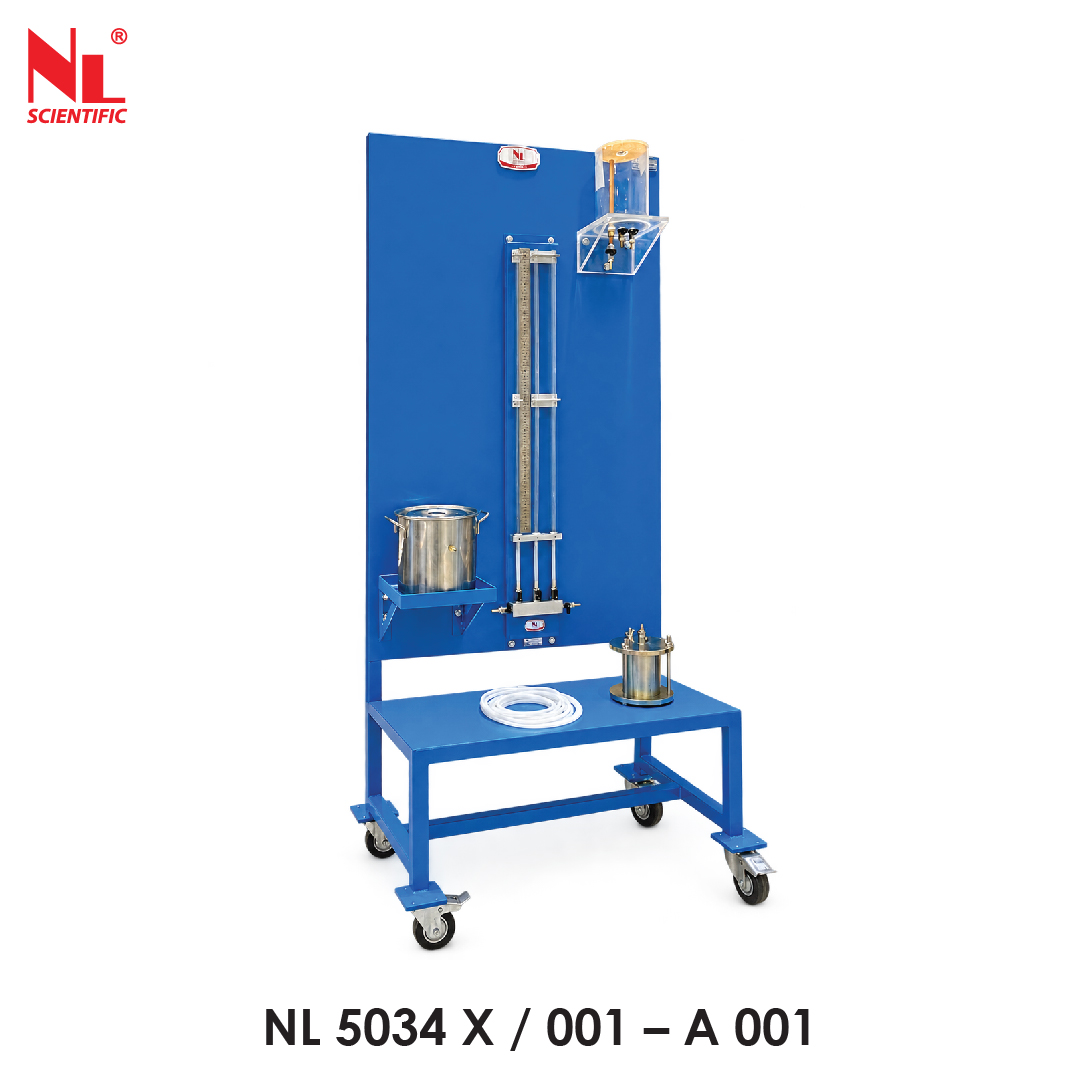

 NL 5034 X / 001 – A 001
  Portable Panel Stand c/w Roller Wheel

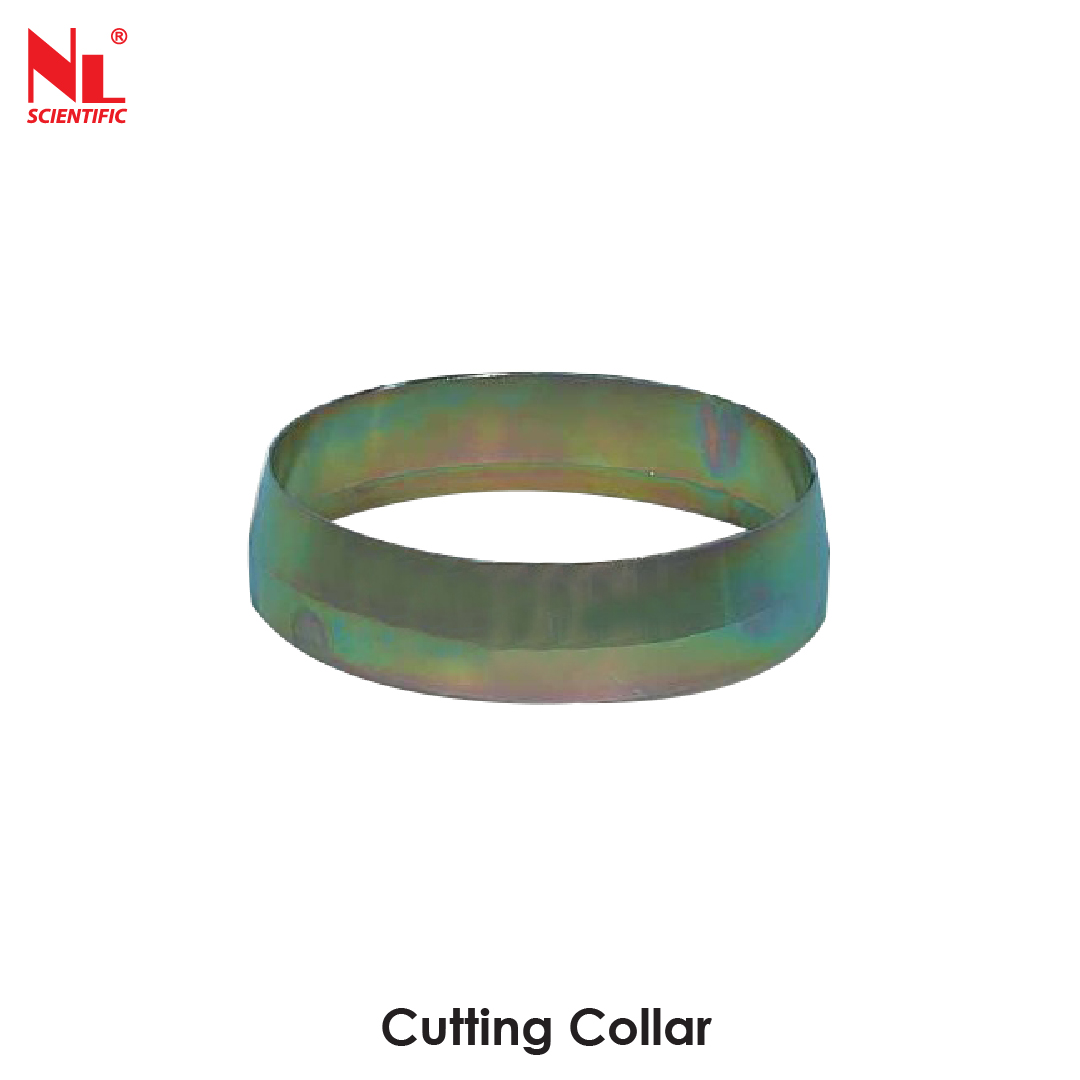

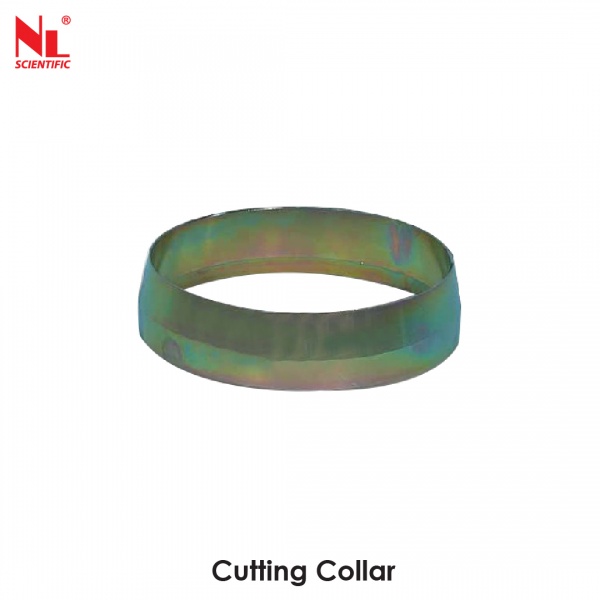

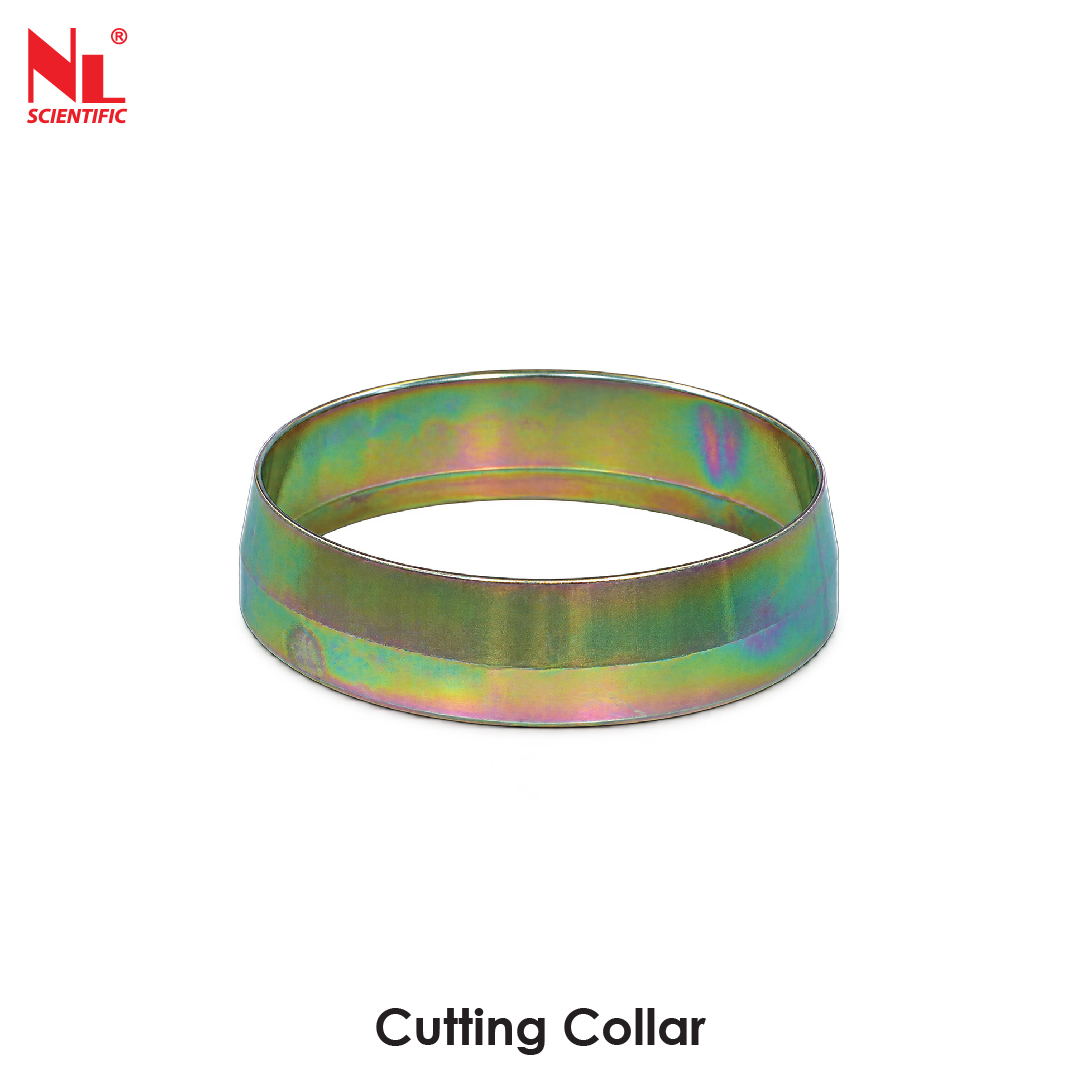

 NL 5035 X / 001 – A 4C  Ø 4” Compaction Permeameter Cell Cutting Collar
 NL 5035 X / 001 – A 6C  Ø 6” Compaction Permeameter Cell Cutting Collar
 NL 5035 X / 001 – A 001  Ø 6” Compaction Permeameter Cell
