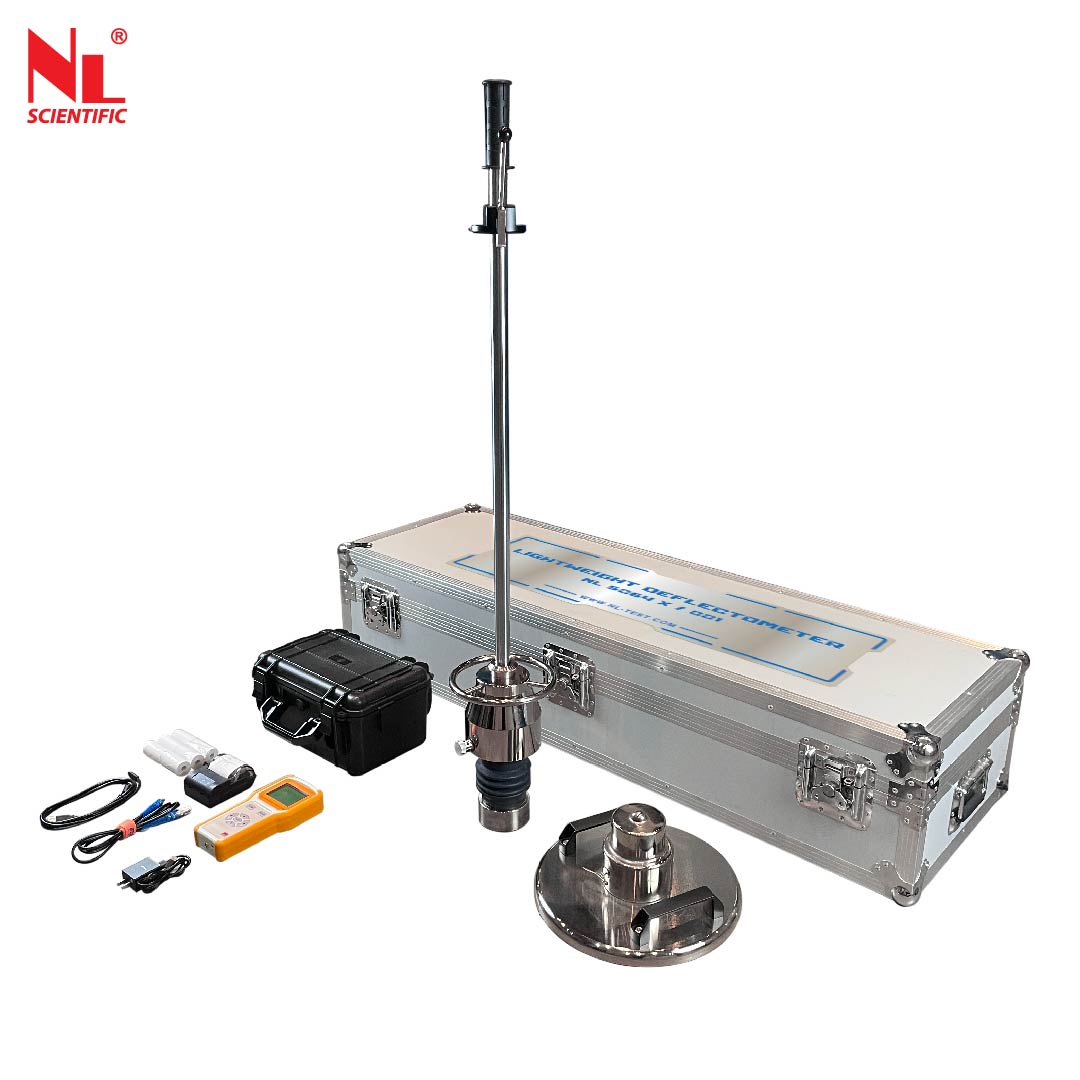

Lightweight Deflectometer
NL 5064 X / 001

  • Description

This equipment used to monitor the bearing capacity of roadbed, that is dynamic deformation modulus Evd. It is suitable for monitoring the construction quality of railway, highway, airport and industrial building under dynamic load, especially suitable for narrow places such as the transition section of road and bridge, existing roadbeds etc.



Technical Specifications :

 Model Number  NL 5064 X / 001
 Max. Impact Force  7.07 kN
 Impact Duration  18.0 ± 2 ms
 Subsidence Test Range  0.1 ~ 2.0 mm ± 0.02 mm
 Dynamic Deformation Test Range  Evd < 225 Mpa
 Work Temperature  -10 ~ 50 °C
 Loading Plate Diameter, Thickness  300 mm, 20 mm
 Dimension (mm)  1330 (L) x 430 (W) x 290 (H)
 Approx. Weight  30 kg
 Power  3.7 V Lithium Battery



Unit Consists Of :

 Model Number  Parts Description Qty

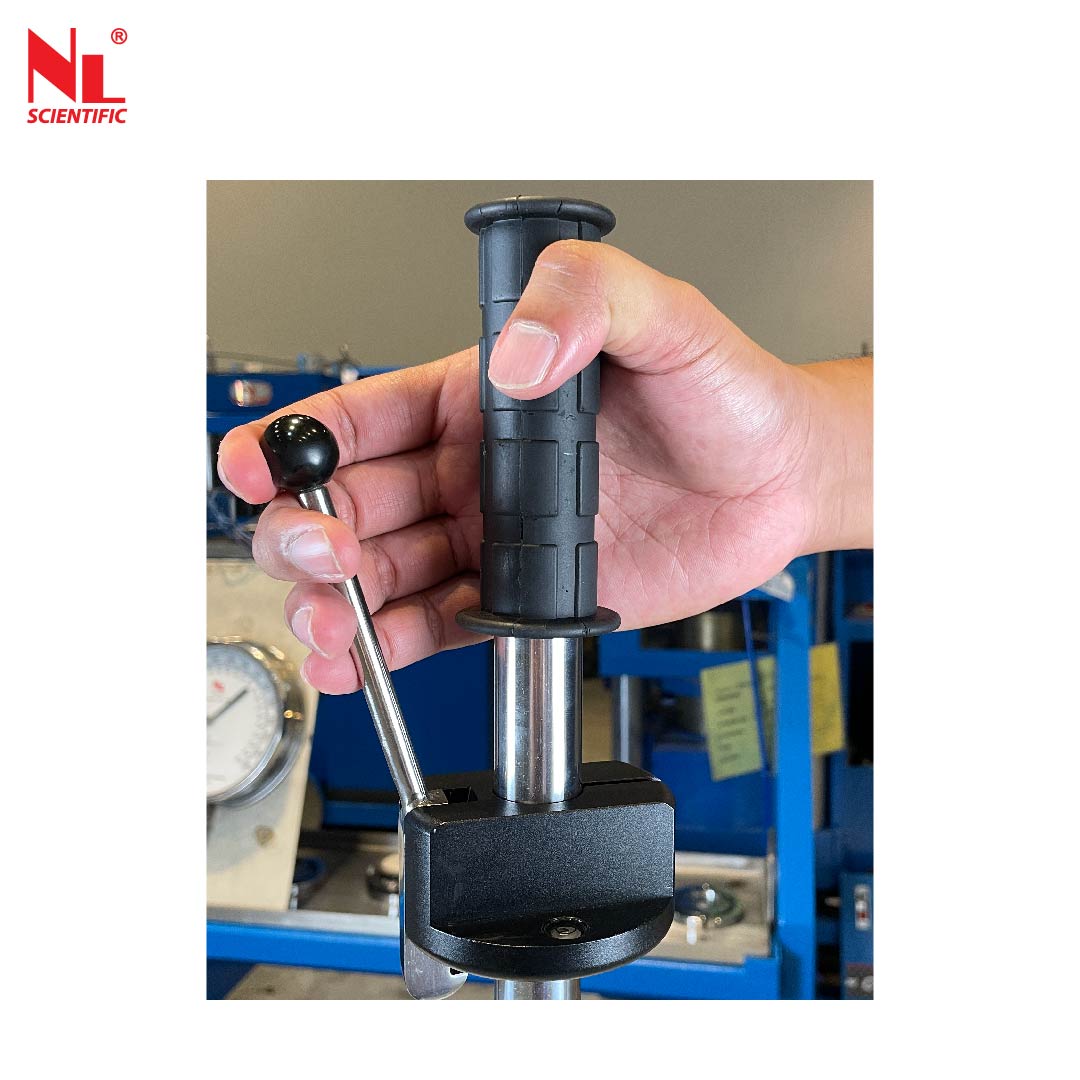

 NL 5064 X / 001 – P 001  Guide Rod w/ Drop Hammer 1no.
 NL 5064 X / 001 – P 002  Loading Plate 1no.

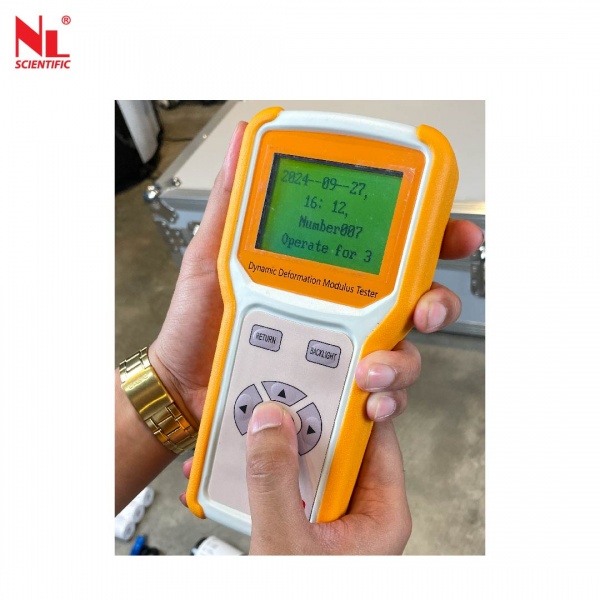

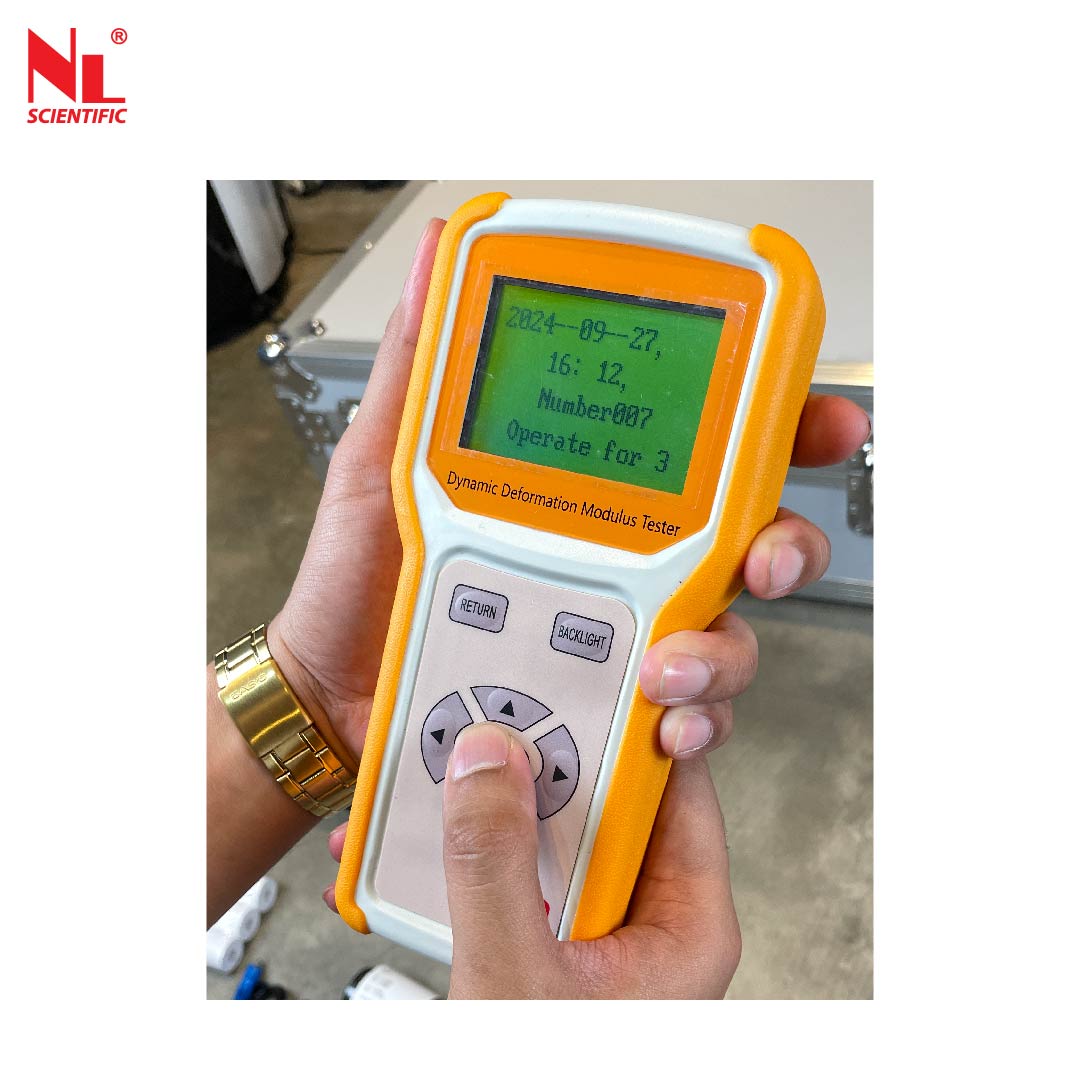

 NL 5064 X / 001 – P 003  Handheld Control Device 1no.
 NL 5064 X / 001 – P 004  Bluetooth Printer 1no.
 NL 5064 X / 001 – P 005  Probe Cable 1no.
 NL 5064 X / 001 – P 006  Charging Cable 1no.
 NL 5064 X / 001 – P 007  Printer Cable 1no.
