Tensile Testing Mechanical Extensometer is an attachment to Universal Tensile/Testing Machine. It measures the elongation of a test piece on load for the set gauge length. The least count of measurement is 0.001 mm and mazimum elongation measured is up to 3 mm. This elongation measurement helps in ...Read more

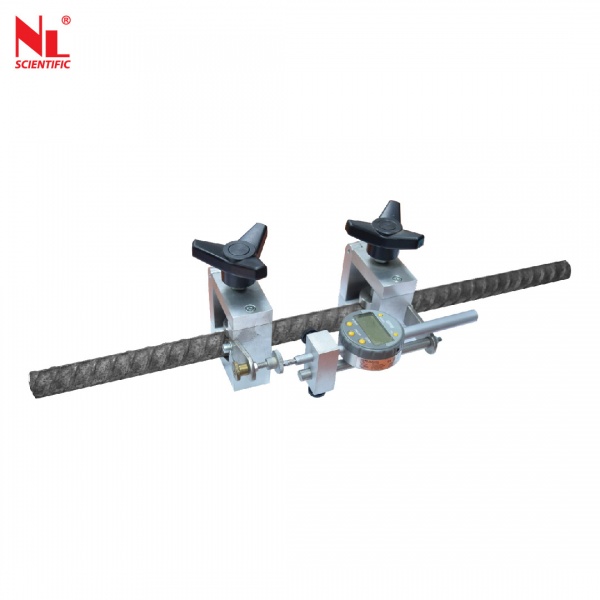

Mechanical Extensometer
NL ME 100S

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Tensile Testing

Mechanical Extensometer is an attachment to Universal Tensile/Testing Machine. It measures the elongation of a test piece on load for the set gauge length. The least count of measurement is 0.001 mm and mazimum elongation measured is up to 3 mm. This elongation measurement helps in finding out of the proof stress at the required elongation percentage.

Technical Specifications :

Model Number	NL ME - 100S
Measuring Range	0 to 25.4 mm
Resolution	0.01 mm
Gauge Length (Adjustable)	10 to 50 mm
Thickness or Diameter of Specimen	1 to 50 mm
Dimension (mm)	285 (L) x 130 (W) x 140 (H)
Approx. Weight	1.6 kg
