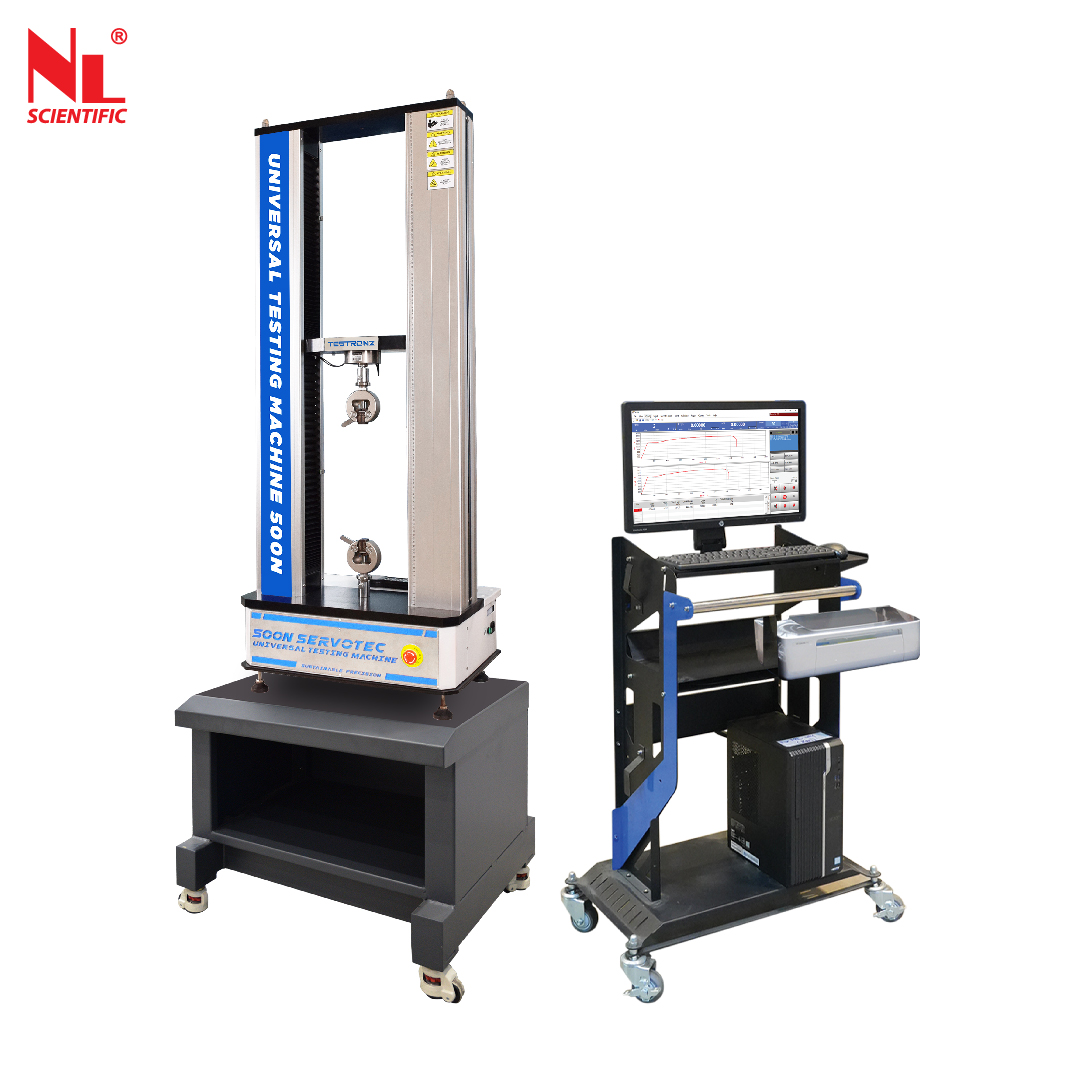

Servotec Universal Testing Machine 500N
TT 6000 X / 025N


  • Description

Standard: BSEN 10002-1, ISO 7500-1, ASTM A370



Tensile & Compression

TT Servotec Fully Automatic Universal Tensile Machine out tester adopts DC speed regulating servomotor & reduction gears as the power source. It real time displays test data & test status with LCD module. Professional designed servo control system realizes the PWM pulse width modulation control mode. It really comes up to with test speed closed loop control mode. It is controlled by single chip automatically control.

Main Use & Range

Used for measurement & test of mechanical property & analytical study of metal, non-metal & composite material, such as aviation, petrochemical, machinery manufacture, wire, cable, textile, fiber, plastic, rubber, ceramic, food, medicine packaging, aluminium plastic tube, plastic door & window, geo-textile, film, wood, paper, metal material & manufacture industry & etc.

It can record the max. test force, fracture value, yield value, max. compression value automatically. It can also calculate the fracture extension & all kind of strength value manually. The RA232 connector can do the function of communicating with computer to do the data work. It is a essential equipment for manufacture, construction unit, product quality supervision & inspection bureau & building material test department. It also could be used in the university for teaching purpose.

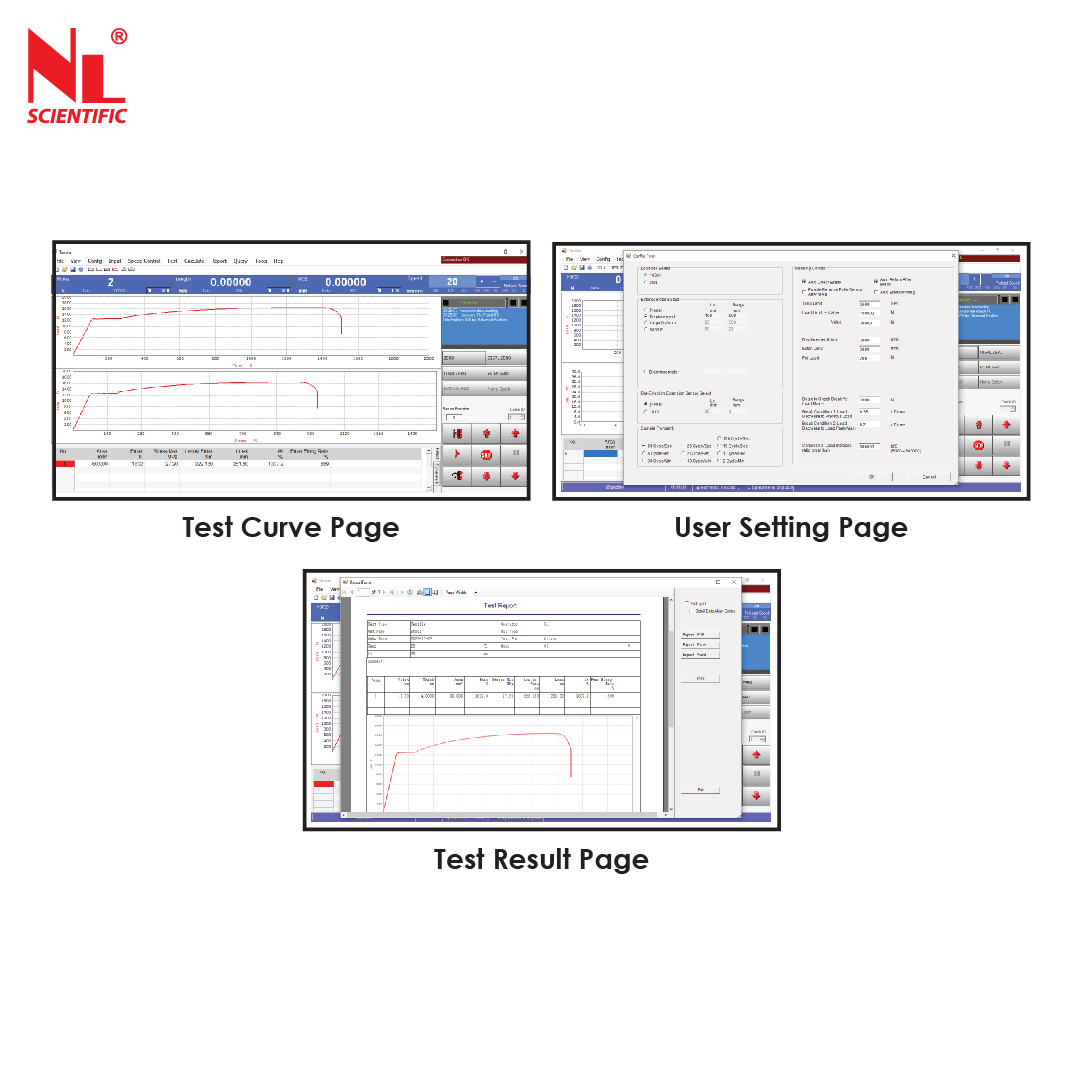

TM 2101 Software

  • Standard Windows interface for easy navigation
  • Real-time display, displacement, stress-strain curves during tests
  • Freely switch between curve screens and view user settings
  • Various control modes: constant speed, fixed displacement, constant force rate, constant stress, constant strain rate
  • Powerful statistical and curve analysis tools (zoom, pan, cross cursor, take point)
  • Multiple historical test data for comparative analysis
  • Open test result editing for customized results
  • Innovative Microsoft Word report format for easy editing
  • Permission management system for secure and reliable software operation

TM 2101 Hardware

  • Main controller: 32-bit ARM processor for high-speed operation and precise control
  • Data acquisition: 24-bit AD with a sampling rate of 2000 times/sec, resolution up to 50000 degrees
  • 6 point calibration technology for improved accuracy (better than national 0.5 standard)
  • Closed-loop technology for accurate control of speed, displacement, and power waveforms
  • Extensive interface expansion: 4 analogue inputs (24-bit), 3 analogue outputs (16-bit), 3 pulse outputs, 3 AB PHASE encoder inputs, 9 switch inputs, 8 switch outputs
  • Additional interfaces: 1 USB, 1 RS232, 1 RS485, 4 LCD interfaces, 1 parallel port micro printer interface, 1 8x4 matrix keyboard interface

Standard description

  • ASTM A370 is a standard specification by ASTM International that defines the mechanical testing of steel products.
  • BSEN 10002-1 is a standard for tensile testing of metallic materials.
  • ISO 7500-1 is a standard for "Testing Machines - Calibration and Verification of the Force-Measuring System.

Technical Specifications :

 Model Number  TT 6000 X / 025N
 Max Test Force  500 N
 Structure Type  Twin Rigid Column With Single High Precision Ball Screw (Desk Top Version)
 Traveling Space  950 mm (exclude fixtures)
 Width Space  350 mm
 Test Force Accuracy  ±0.8%
 Test Speed Range  0.01 - 500mm/min
 Load Resolution  1/250 000
 Measuring Range  1% - 100% Full Scale
 Load Unit  MN, N, t & kN (selectable)
 Curve Display  Selectable Axial Parameters:
 Y-axis - time, load, displacement, deformation, stress, strain.
 X-axis - time, load, displacement, deformation, stress, strain.
 Data Display  Max. Force, Tensile Strength, Upper & Lower Yield, Specimen Details, etc.
 Main Drive Unit  Precision Servo Drive & Servo Motor
 Software  TestMaster
 Safety Feature  Emergency Stop, Over Load Protection, Upper & Lower Limit Sensor with Auto Stop
 Power Source  220 ~240V, 600W, 4A, 1Ph, 50/60 Hz, 0.8Hp
 Dimension (LxWxH)  660(L) x 440(W) x 1700(H) mm
 Approx Weight  220 kg
