Standard: BS EN 10002-1, ISO 7500-1, ASTM A370
Tensile & Compression

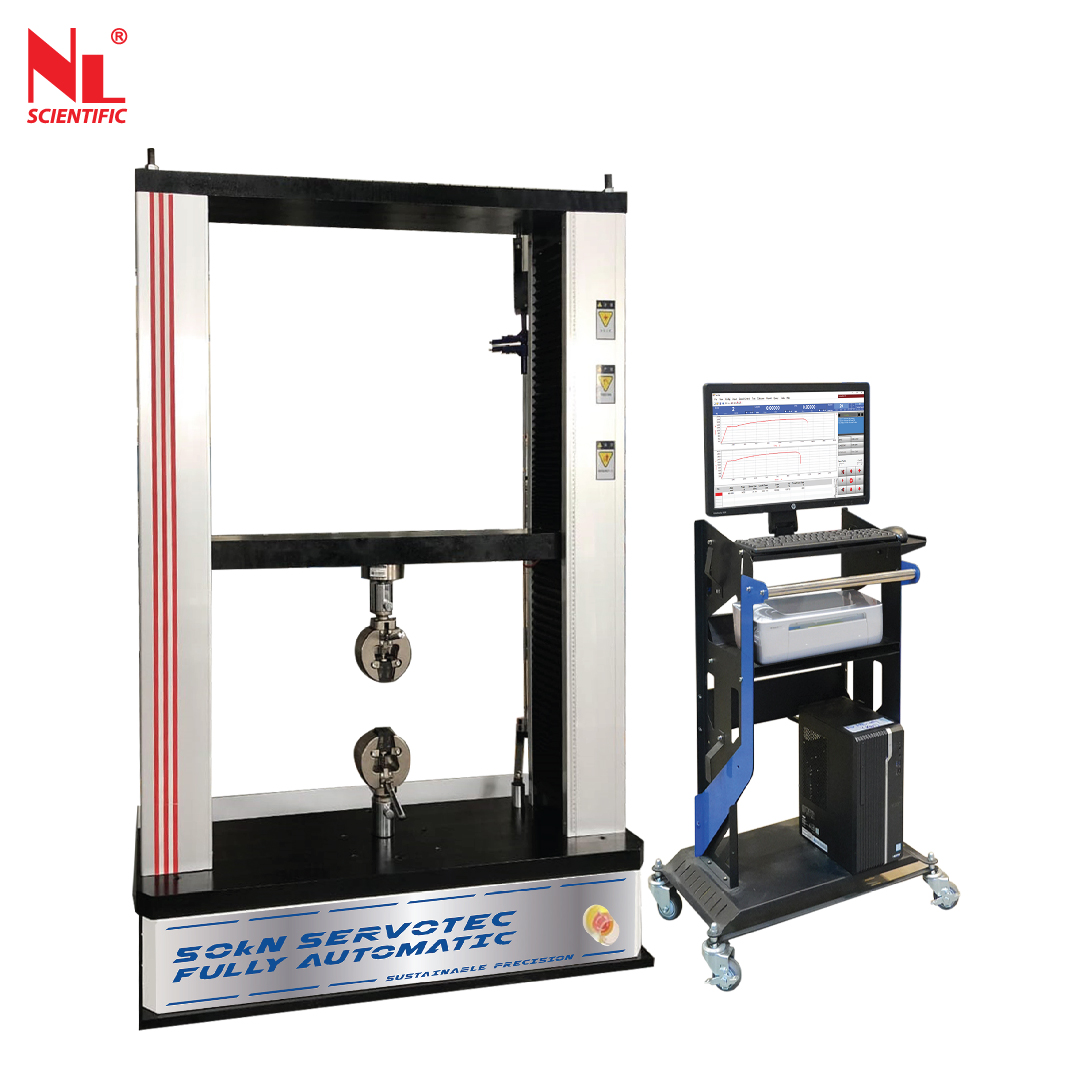

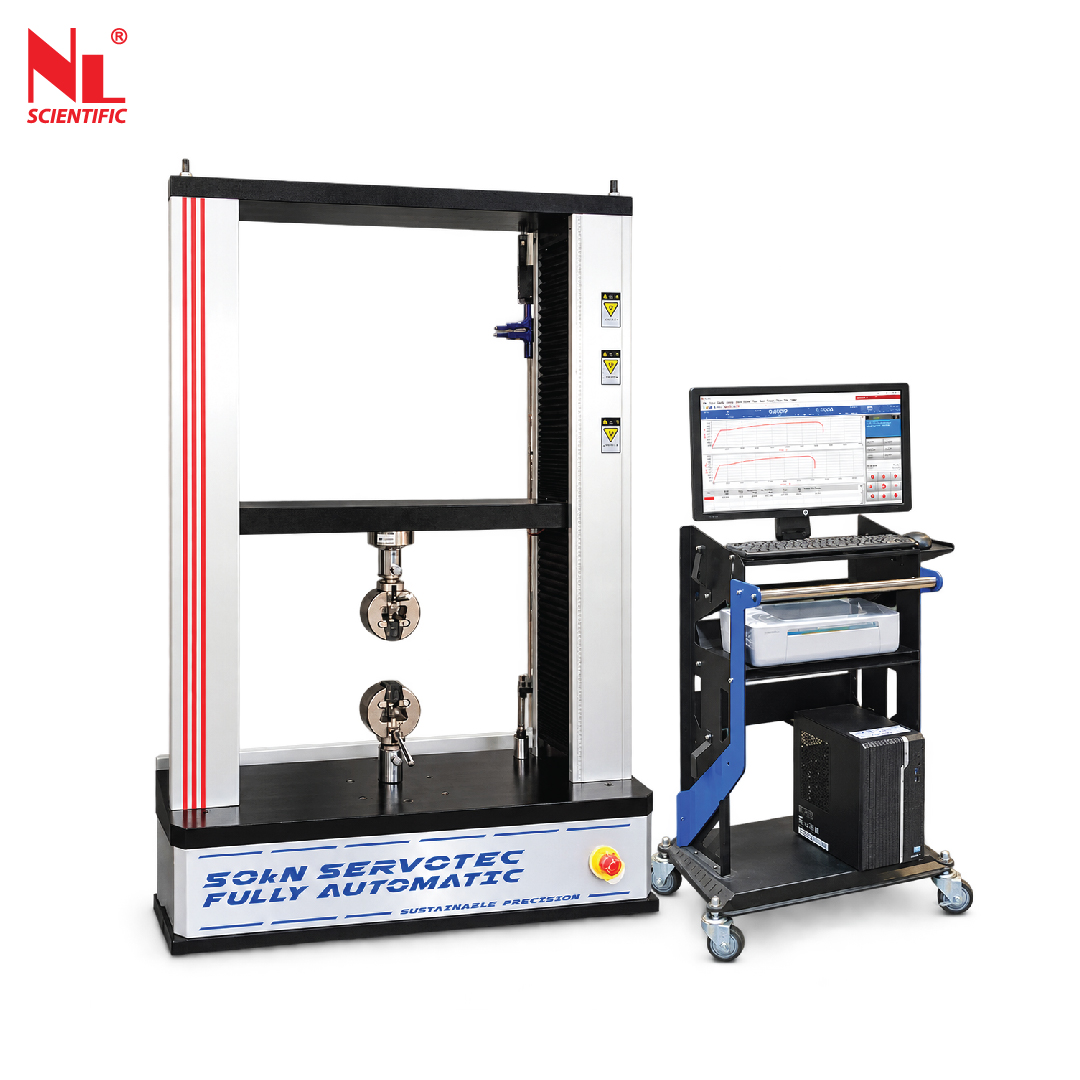

TT Servotec Fully Automatic Universal Testing Machine out tester adopts DC speed regulating servomotor & reduction gears as the power source. Its real time displays test data & test status with LCD module. Professional designed servo control system realizes the PWM pulse width modulation control mode. It really comes up to with test speed closed loop control mode. It is controlled by single chip automatically control.
Main Use & Range
Used for measurement & test of mechanical property & analytical study of metal, non-metal & composite material, such as aviation, petrochemical, machinery manufacture, wire, cable, textile, fiber, plastic, rubber, ceramic, food, medicine packaging, aluminium plastic tube, plastic door & window, geo-textile, film, wood, paper, metal material & manufacture industry & etc. It can record the max. test force, fracture value, yield value, max. compression value automatically. It can also calculate the fracture extension & all kind of strength value manually. The RA232 connector can do the function of communicating with computer to do the data work. It is an essential equipment for manufacture, construction unit, product quality supervision & inspection bureau & building material test department. It also could be used in the university for teaching purpose.
Features:-
Testable Items
General test item: (General display value and calculated value)
- Tensile stress
- Tensile strength
- Pulling strength
- Stable tensile stress
- Constant stress force value
- Tear off the elongation
- Constant stress elongation
- Tear strength
- Any point force value.
- Any point elongation
- Extraction
- Computation of adhesion and peak value
- Pressure test
- Bending test
- Adhesive force stripping force test
- Extraction force piercing force test
- Cycle test
Technical Specifications :
| Model Number |
TT 6000 X / 019EW |
| Max Test Force |
50 kN |
| Structure Type |
Twin Rigid Column With Twin High Precision Ball Screw |
| Traveling Space |
950 mm (exclude fixtures) |
| Width Space |
1110 mm |
| Test Force Accuracy |
±0.5% |
| Test Speed Range |
0.01 - 500 mm/min |
| Load Resolution |
1/100 000 |
| Displacement Resolution |
1/1000 |
| Displacement Accuracy |
≤0.5%
|

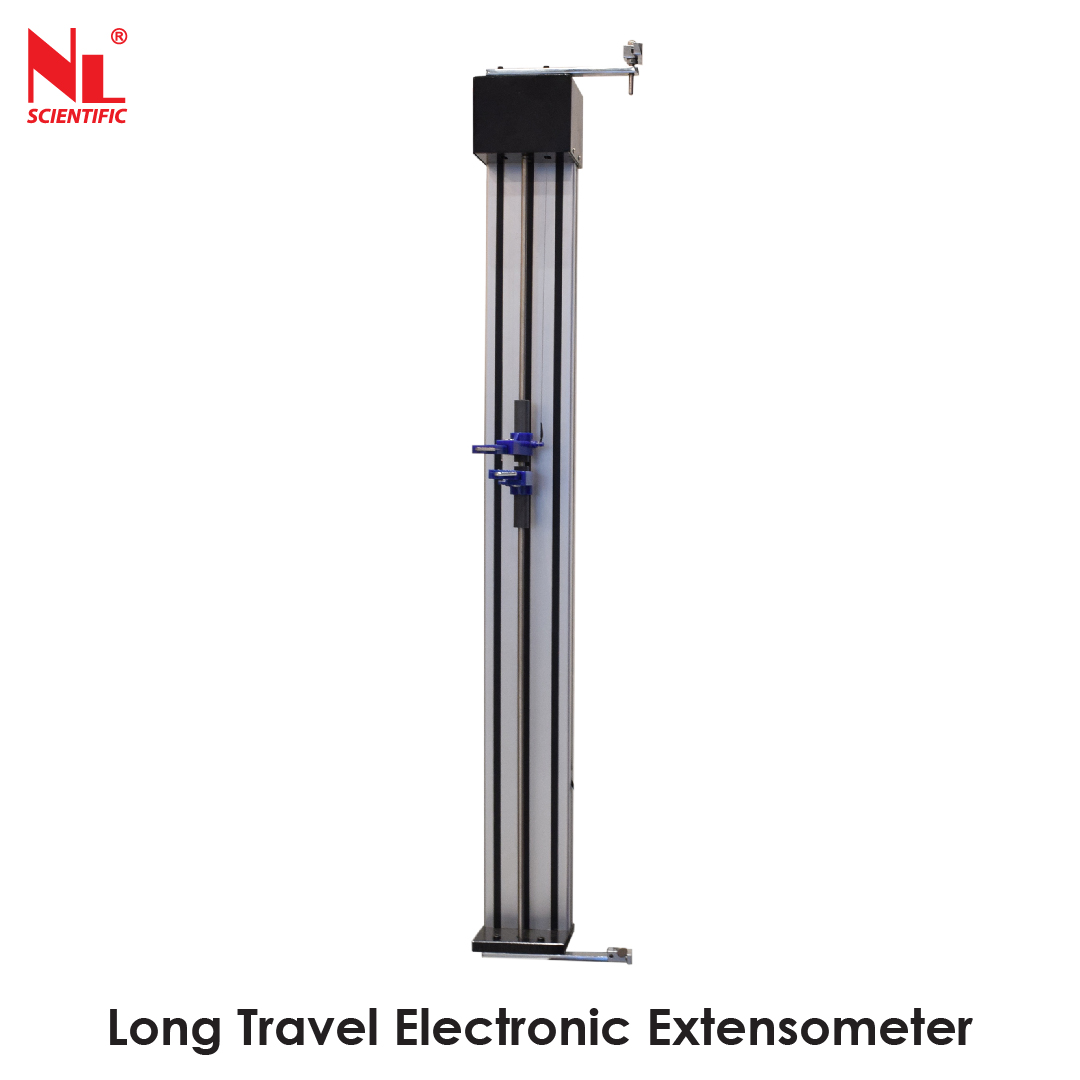

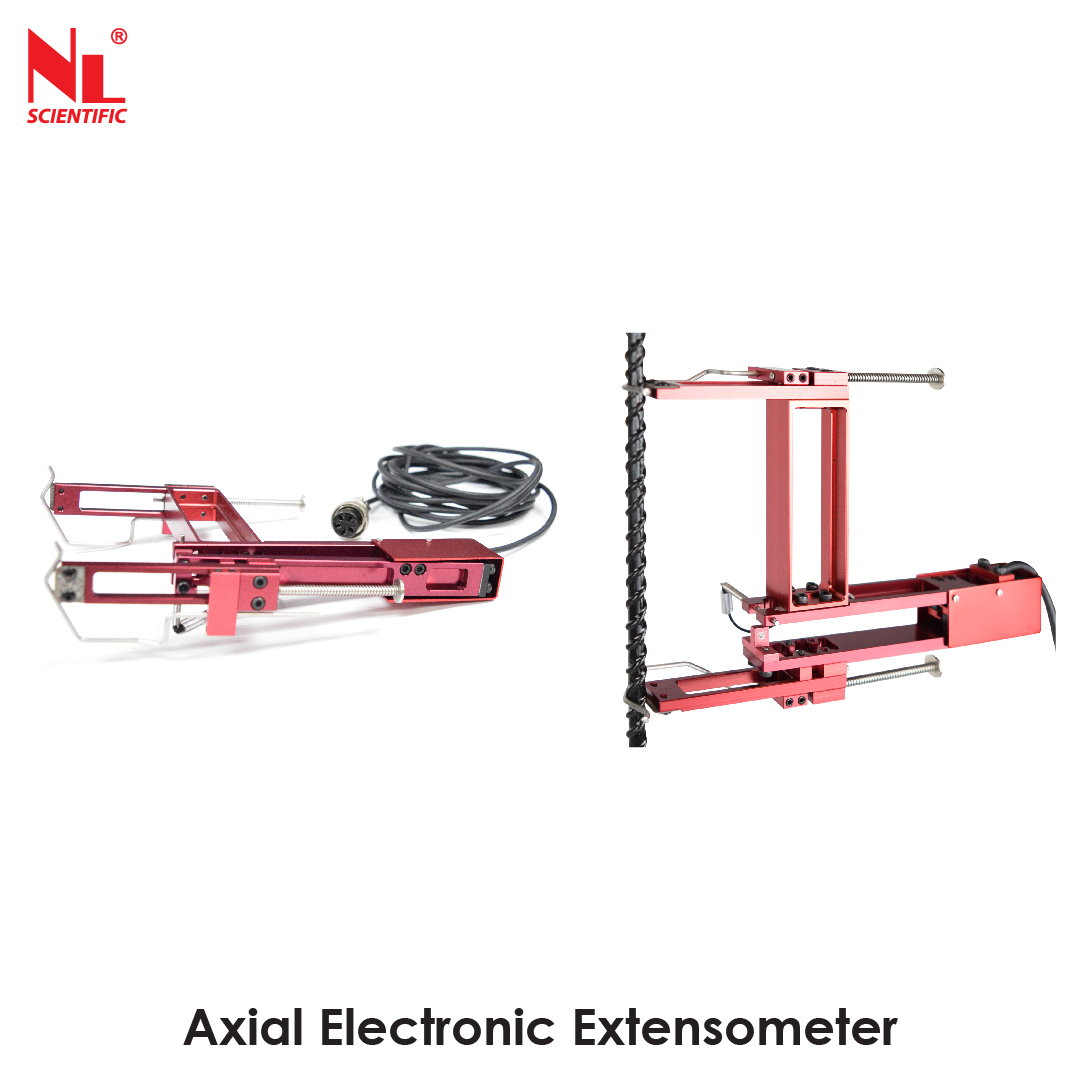

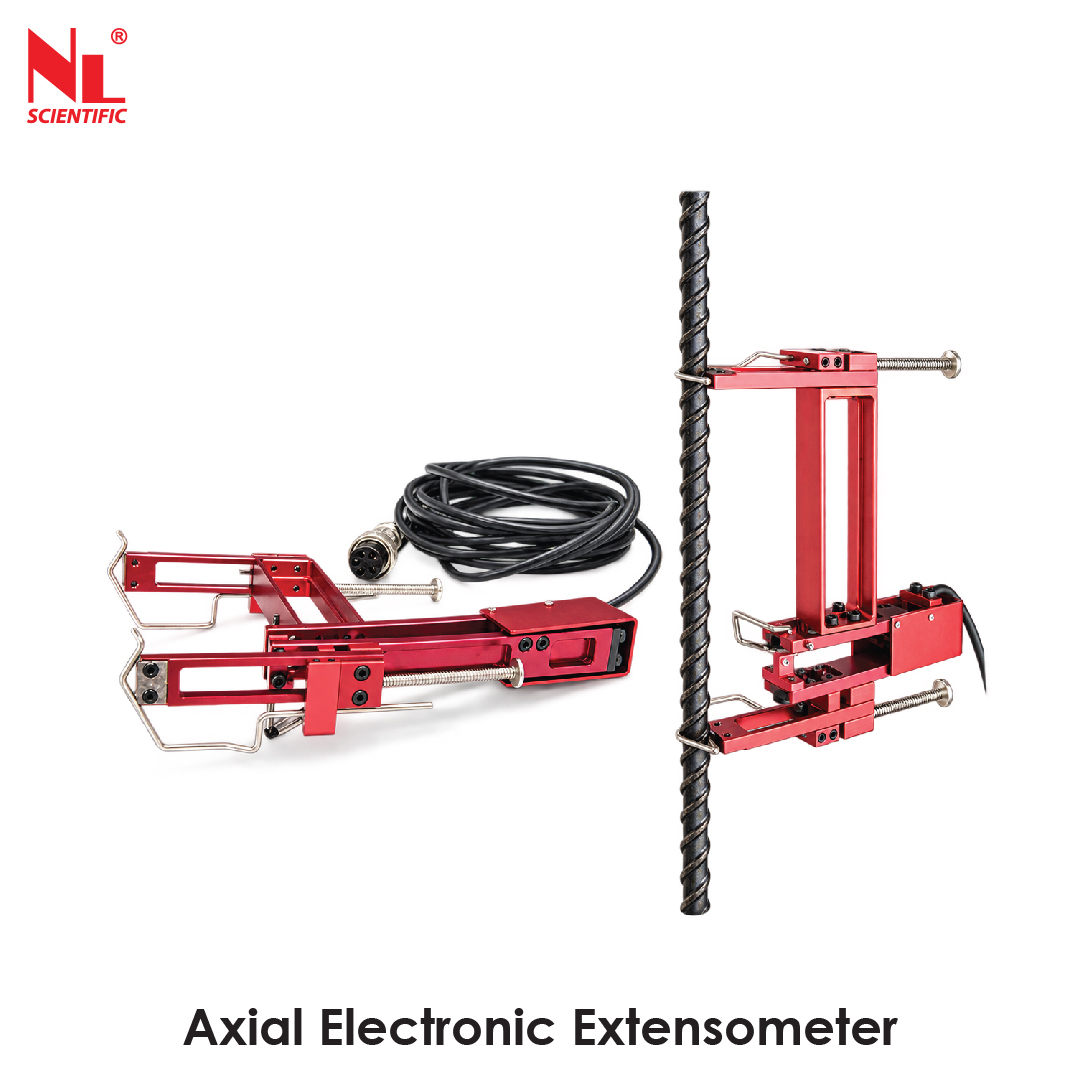

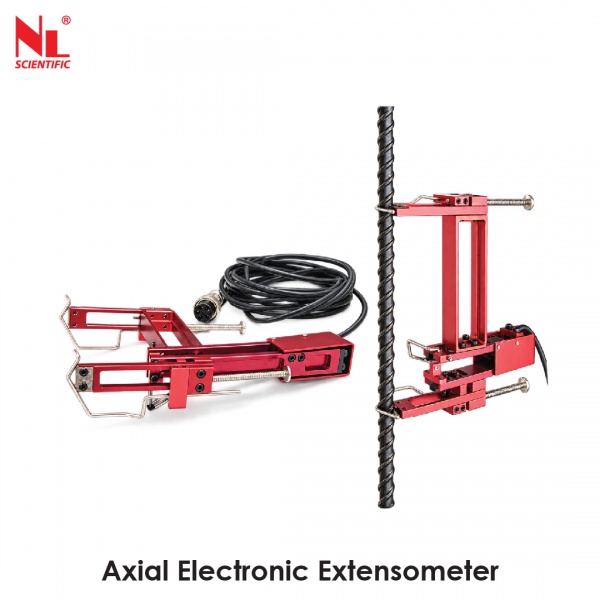

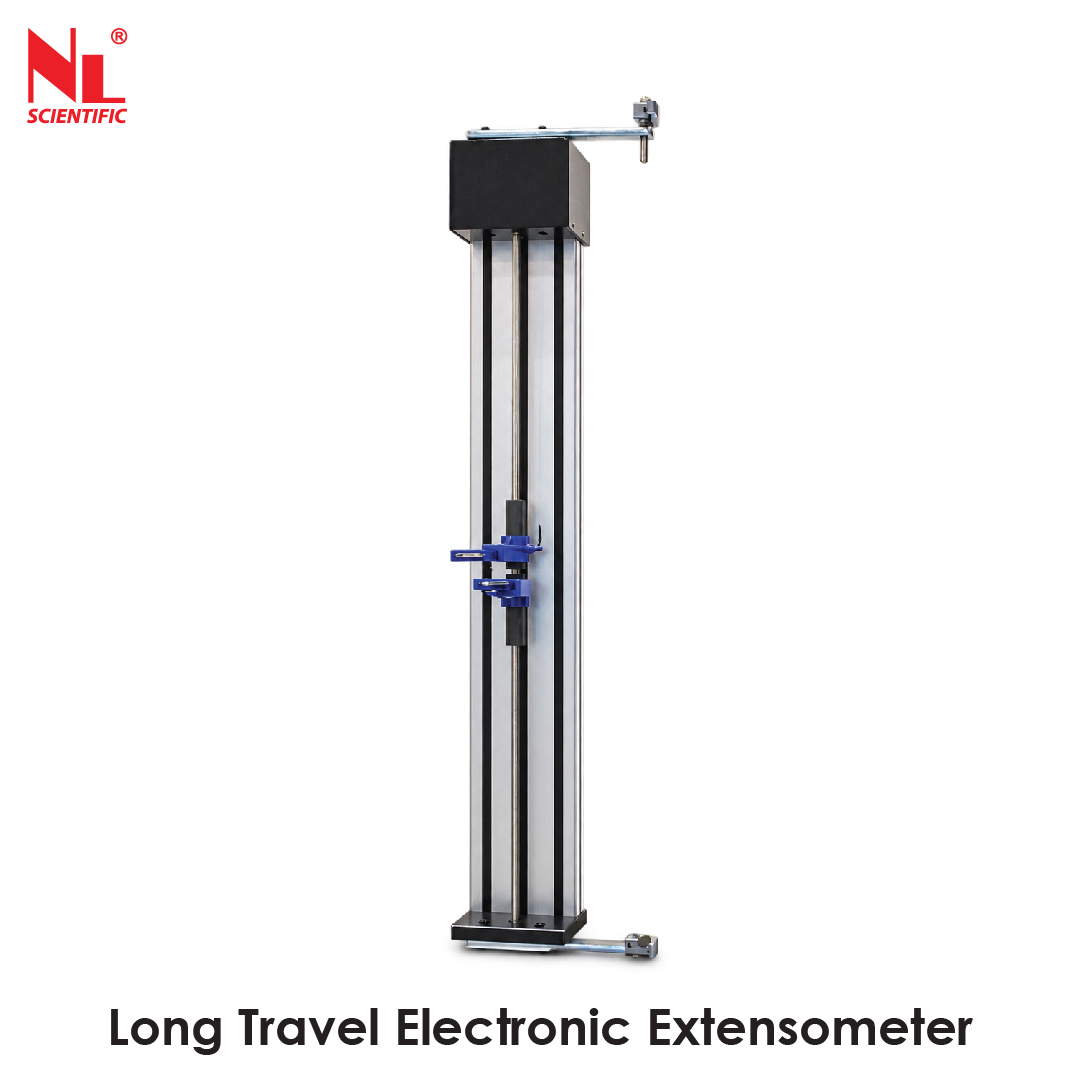

| Resolution of Metal Extenders |
1/1000 |
| Accuracy of Metal Extenders |
≤0.5%
|
Accuracy of Extenders
|
±1 mm
|
| Measuring Range |
0.5% - 100% Full Scale |
| Load Unit |
Gf, kgf, N, kN, Lbf, etc. |

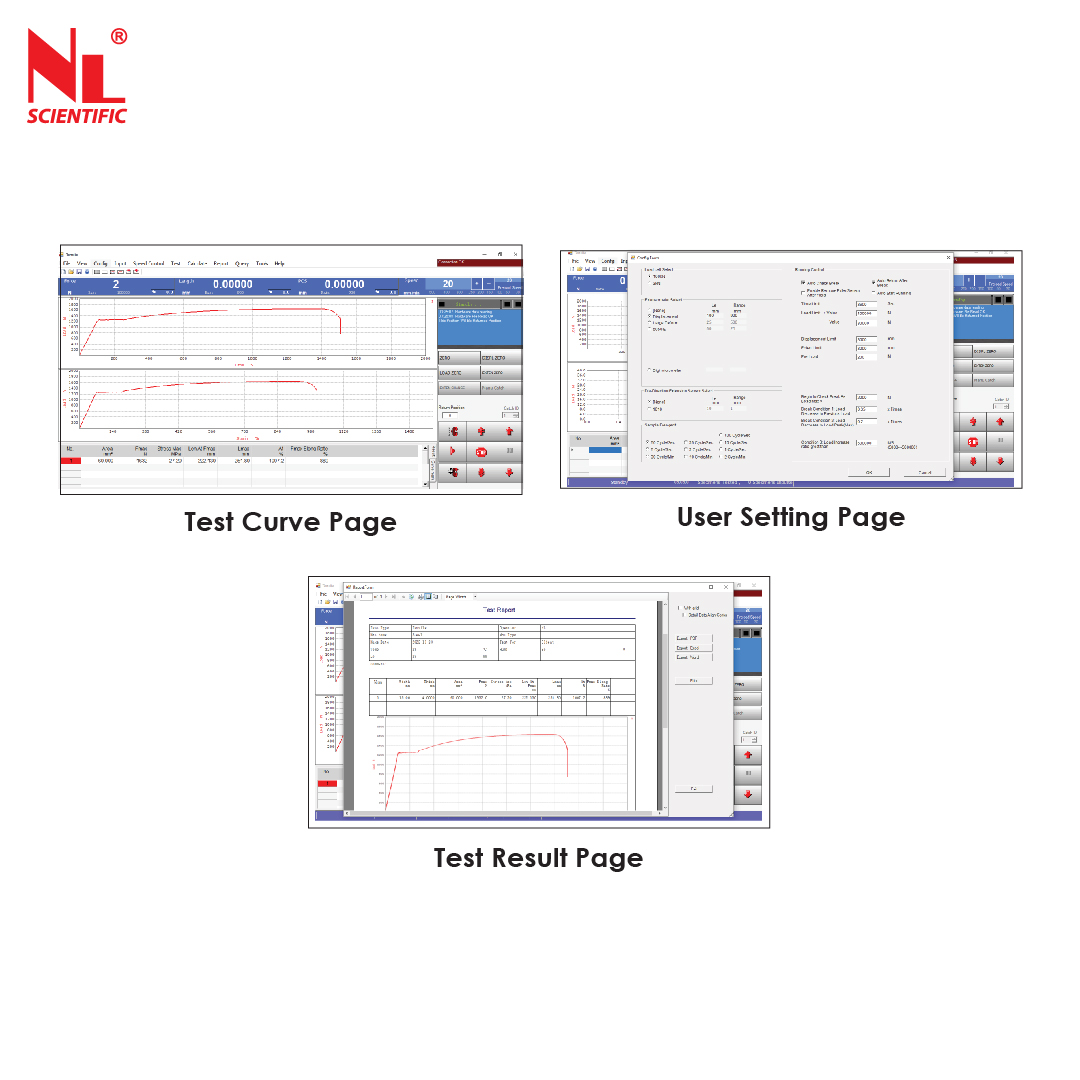

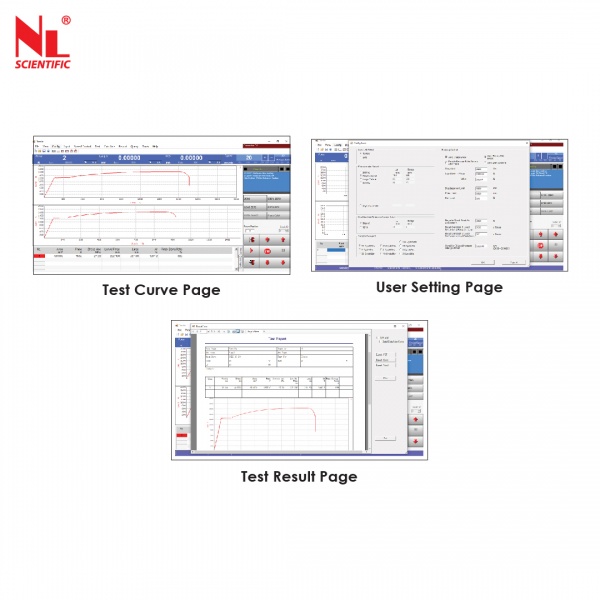

| Curve Display |
Selectable Axial Parameters:
Y-axis - time, load, displacement, deformation, stress, strain.
X-axis - time, load, displacement, deformation, stress, strain. |
| Data Display |
Max. Force, Speed, Specimen Detail, Strength (Kpa, Mpa, N/mm, Nmm ) |
| Main Drive Unit |
Precision Servo Drive & Servo Motor |
| Safety Feature |
Emergency Stop, Overload Protection, Upper & Lower Limit Switch Load Sensor with Auto Retreat |
| Power Source |
220 ~ 240V, 1500W, 4A, 1Ph, 50/60 Hz, 2Hp |
| Product Dimension |
1500(L) x 450(W) x 1950(H) mm |
| Packing Dimension |
1650(L) x 500(W) x 2100(H) mm |
| Approx Weight |
350 kg |
| Packing Weight |
400 kg |
