Standard: BS EN 12004-2
Specially designed for transverse deformation testing of tile adhesives and grouts in conformance with the stringent requirements of EN 12004. Design base on standard specifies the methods for determining characteristics for adhesives used in internal and external installation of ceramic tiles. Ceramic tile adhesives can be used also for other kinds of tiles (natural and agglomerated stones, etc) if they do not adversely affect the stones.
Technical Specifications:

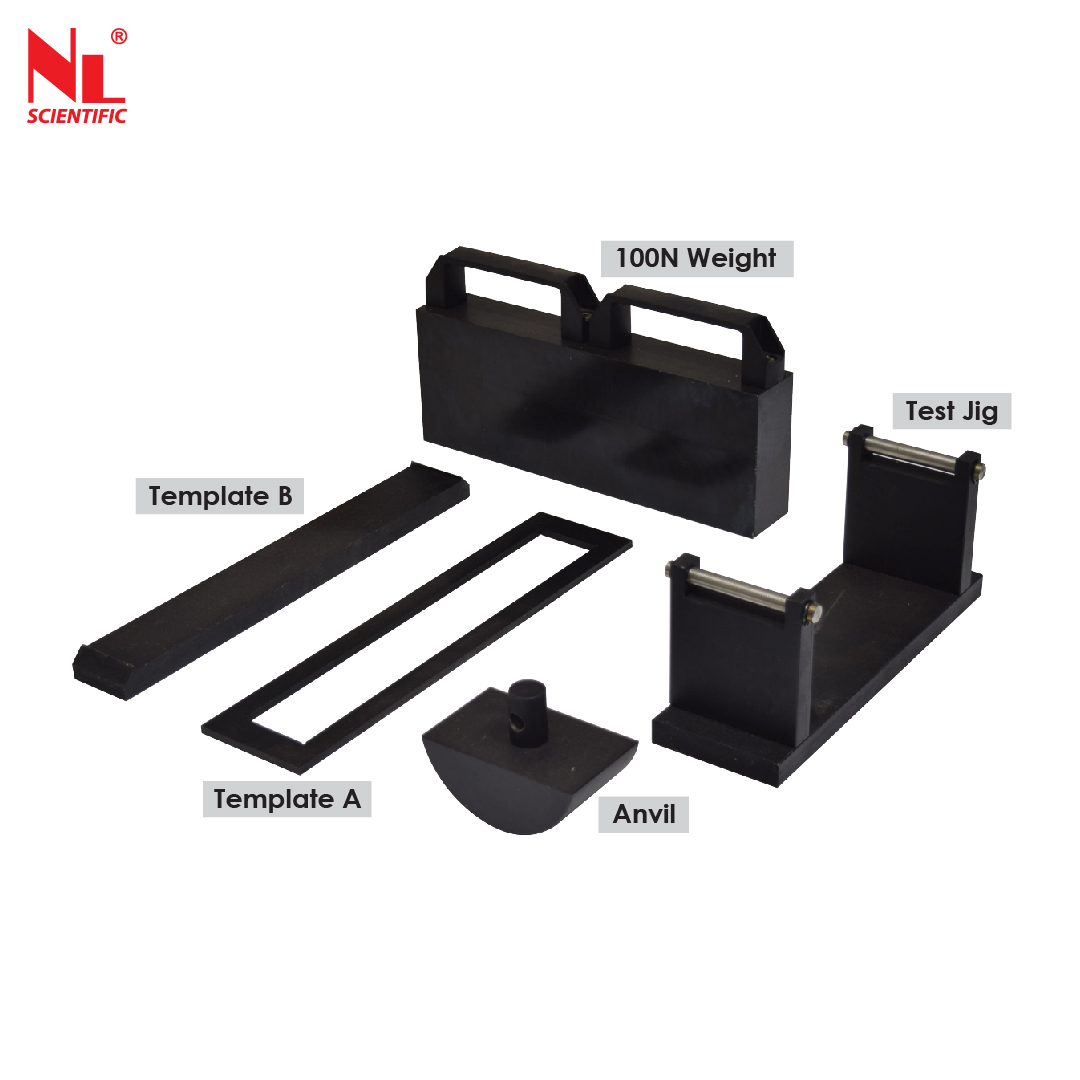

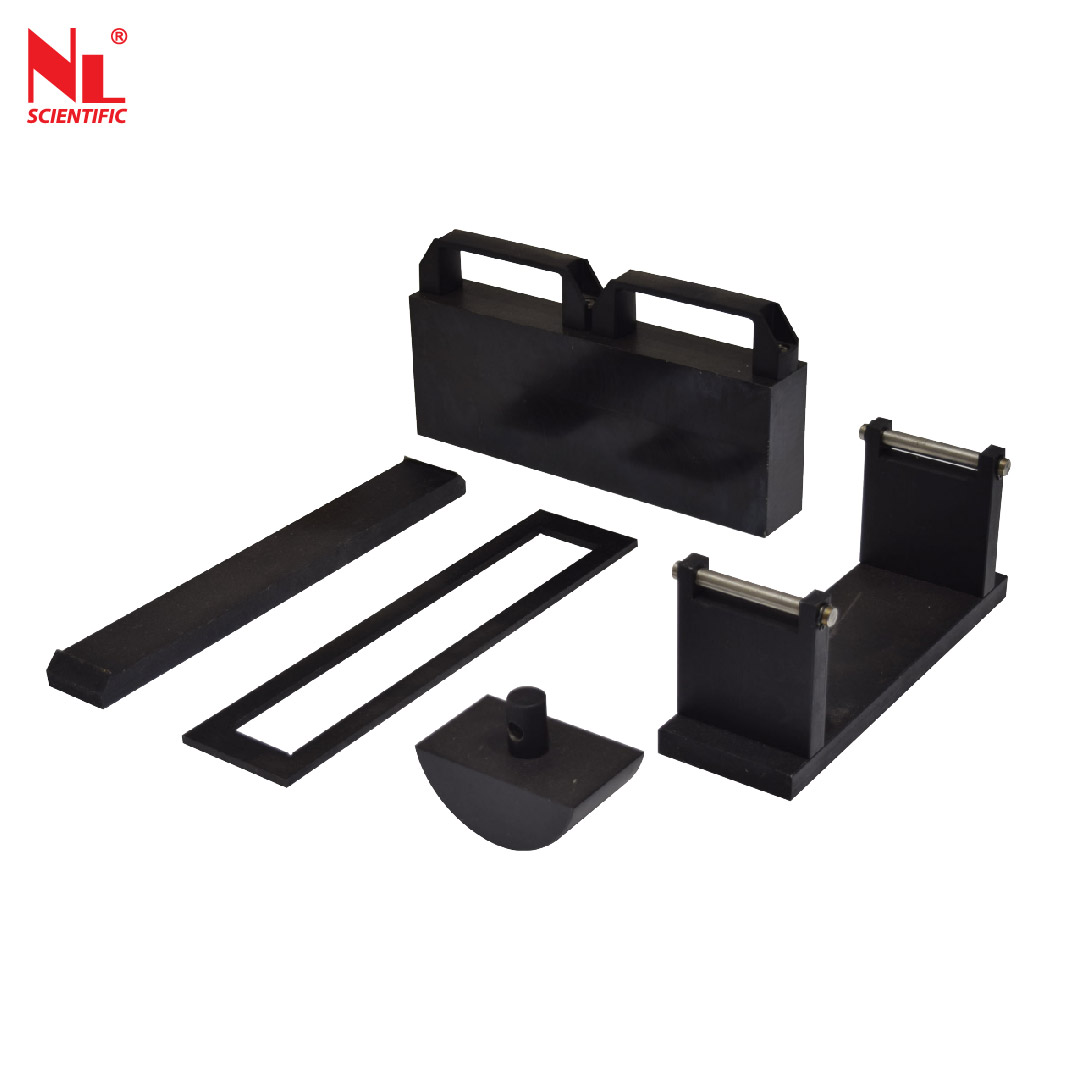

| Model Number |
Description |
| NL 3041 X / 001 - P001 |
Rectangular Frame
Mould for specimen preparation to EN 12004 (Template A), internal dimension 280 x 45 mm, 5 mm thickness
|
| NL 3041 X / 001 - P002 |
Specimen Mould
Pressure plate for specimen preparation to EN 12004 (Template B), dimensions 300 x 45 mm, 3 mm thickness |
| NL 3041 X / 001 - P003 |
100N Weight for specimen preparation to EN 12004, dimensions 290 x 45 mm,100 mm thickness |
| NL 3041 X / 001 - P004 |
Flexural Device c/w Loading Anvil |
*1 Copy of Manual Intructions
