Standard: BS EN ISO 15630-1, ASTM A615/A615M, MS 146, ISO 6935-2(GB/T1499.2-2018 Steel for the reinforcement of concrete-Part 2: Ribbed bars) The device used for bending & re-bending reinforced concrete bar. A bend test are used to determine whether a specific piece of metal will break or fract ...Read more

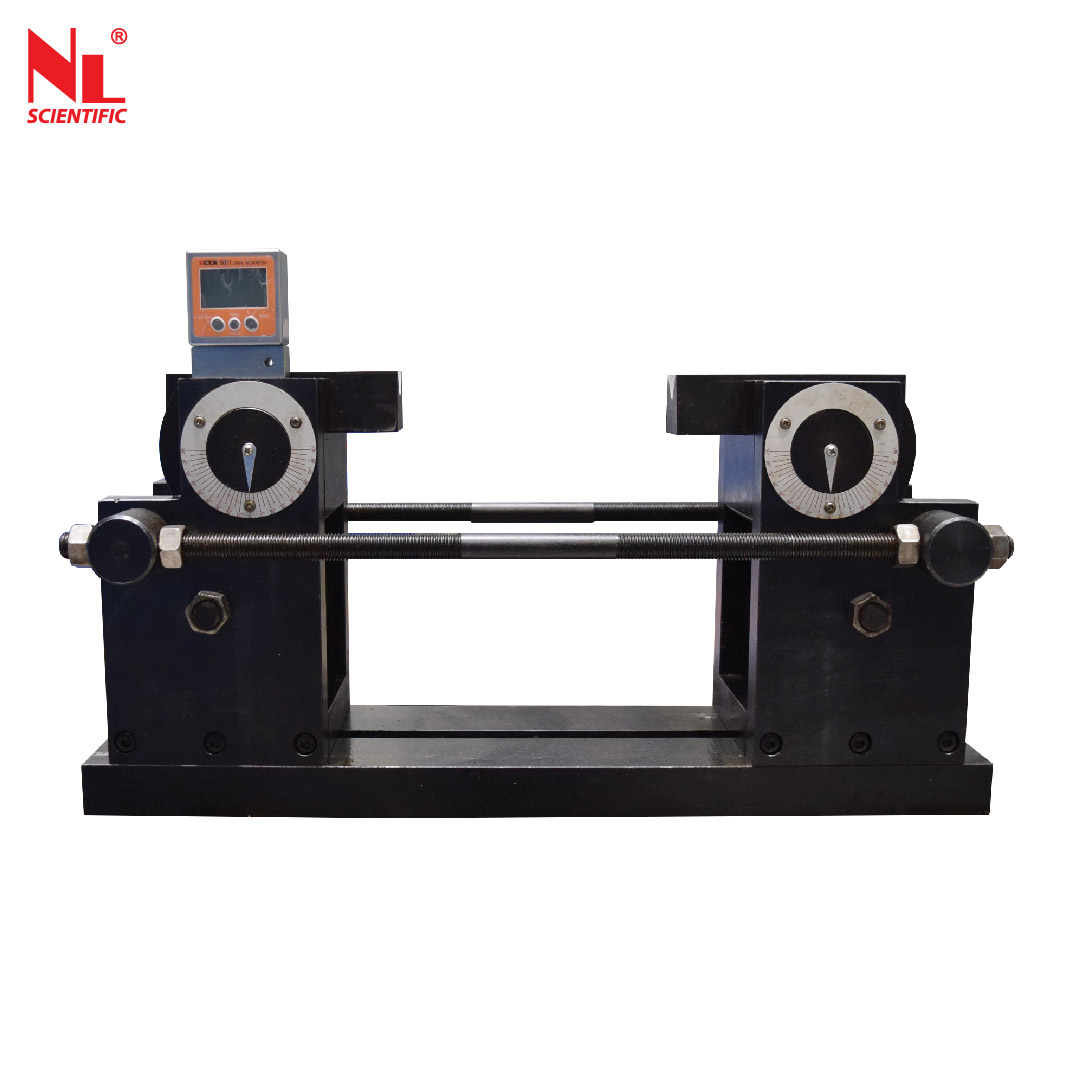

Bend & Re-Bend Device
NL 6000 X / BRD

BY EMAIL

By Whatsapp

PRODUCT DETAIL

Description

Standard: BS EN ISO 15630-1, ASTM A615/A615M, MS 146, ISO 6935-2
(GB/T1499.2-2018 Steel for the reinforcement of concrete-Part 2: Ribbed bars)

The device used for bending & re-bending reinforced concrete bar. A bend test are used to determine whether a specific piece of metal will break or fracture under pressure. The bend test are essentially measuring a metal’s ductility. Ductility defines how easily a metal can bend without breaking. The higher the ductility of a metal, the more it can bend without breaking.

Technical Specifications :

Model Number	NL 6000 X / BRD
Max. Bending Angle	90° - 110°
Max. Re-bending Angle	20° - 45°
Bending Specimen Size	6 mm to 25.4 mm Dia.
Rebend Specimen Size	6 mm to 25.4 mm Dia.
Max. Specimen Length	600 mm
Dimension (mm)	560 (L) X 230 (W) X 280 (H) mm
Approx. Weight	65.3 kg

*1 Copy of Manual Instructions
